LilyGo T-Camera S3 – OV2640

19-00090220
H591
Διαθέσιμο
Αποστολή σε 24 ώρες
2990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

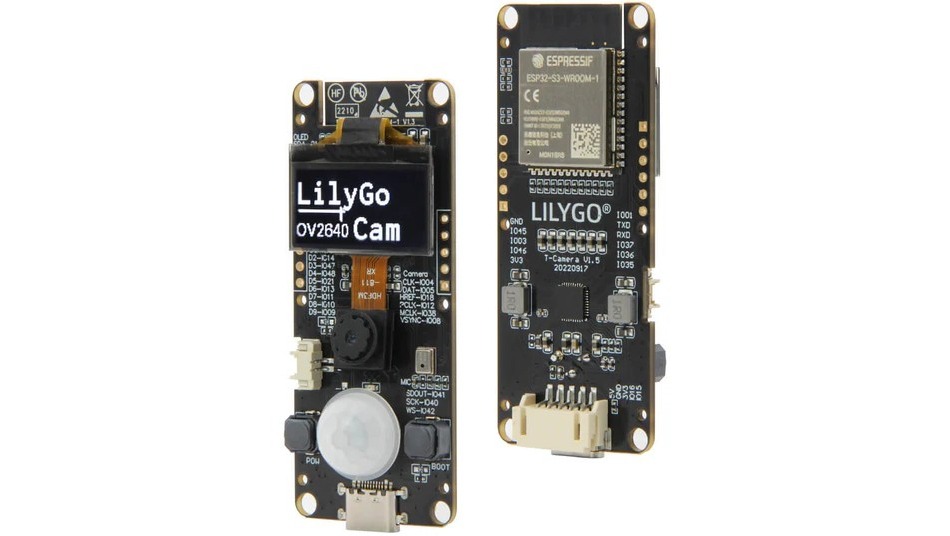

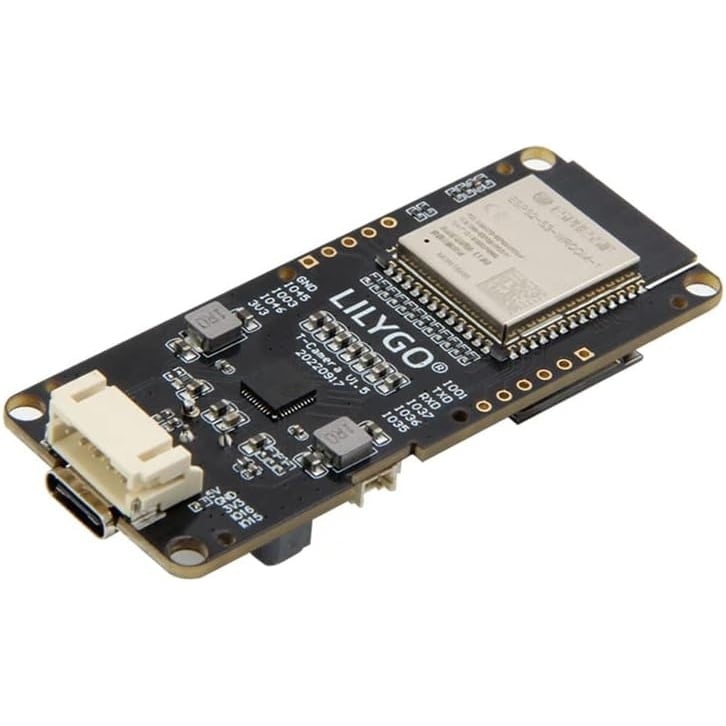

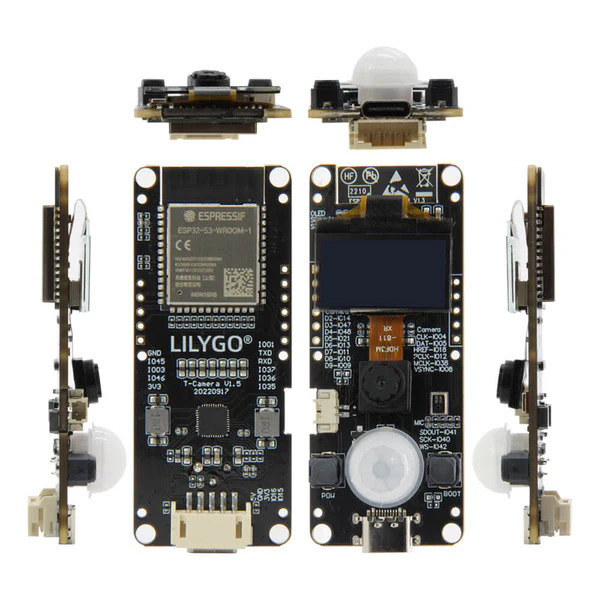

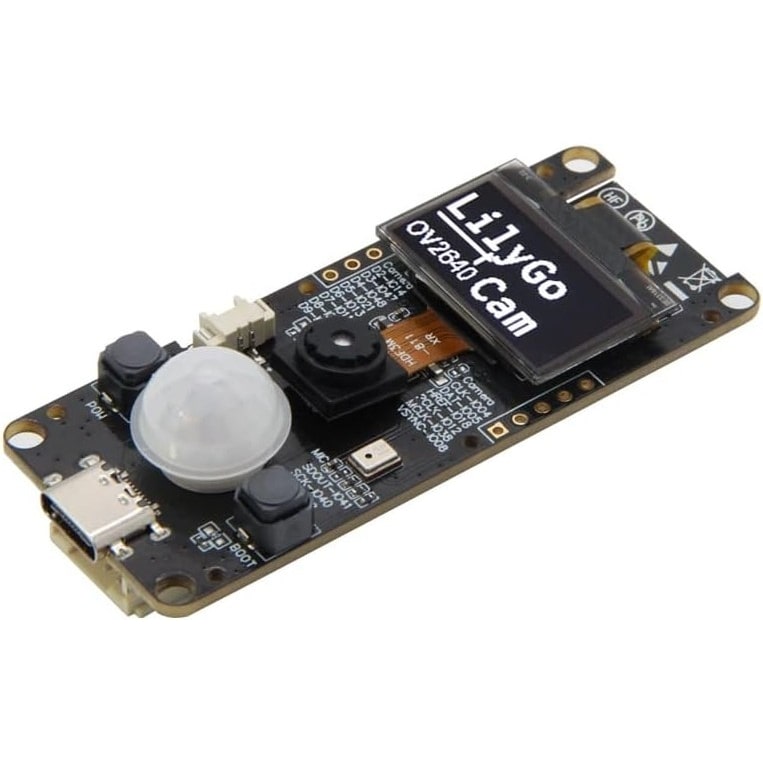

The T-Camera S3 is an advanced development board powered by the ESP32-S3 microprocessor, featuring integrated wireless capabilities. It comes equipped with an OV2640 camera module, OLED display, a PIR sensor, and a microphone. The board is designed for various IoT and embedded applications, including camera and sensor-based projects, and offers ample customization with its versatile features.

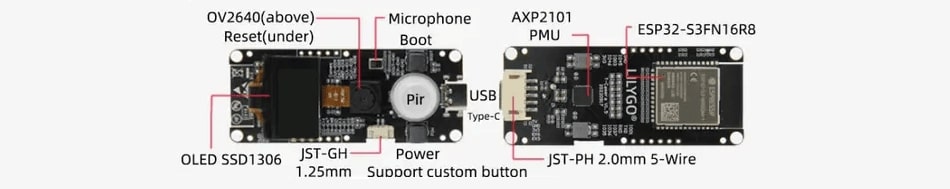

Key features
  • Microprocessor: Powered by the ESP32-S3 Dual-core microprocessor, providing efficient processing and multi-functional performance.
  • Camera module: OV2640 camera with 2 million pixels for high-quality imaging.
  • Wireless connectivity: Supports Wi-Fi 802.11 and Bluetooth 5 for seamless wireless communication.
  • OLED Display: Includes 0.96-inch OLED SSD1306 display with 128×64 resolution, ideal for quick system feedback and status updates.
  • Sensors: Equipped with a PIR motion sensor for motion detection and microphone for audio sensing.
  • Power Supply: Operates with a 3.3V voltage, making it energy-efficient.



Technical data

MCU

ESP32-S3FN16R8 Dual-core microprocessor

Wireless connectivity

Wi-Fi 802.11, BLE 5 + BT mesh

PSRAM

8MB

Flash

16MB

Camera pixels

2 Million (UXGA 1622×1200)

Display size

0.96 inch, 128×64 pixels

Display driver

SSD1306

Display interface

I2C

Programming platform

Arduino-IDE, VS Code

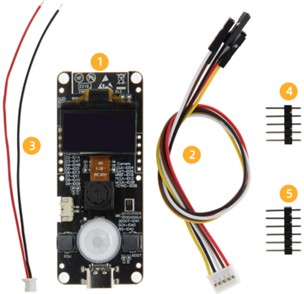

Package contents
  • T-Camera S3 ×1
  • 2.0mm 5pin to jumper wire (20cm) ×1
  • JST 2.0mm 2pin ×1
  • 2.54mm male pin (5pin) ×1
  • 2.54mm male pin (6pin) ×1


Κατασκευαστής
LILYGO
Part Number
H591
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται με εγγύηση
Καθ. Βάρος
0.001kg
Board Specifications
MCU/SoC
ESP32-S3
Processor
Xtensa dual-core 32-bit LX7
Clock Speed
240 MHz
RAM
512 kB SRAM & 8 MB PSRAM
ROM
384 kB
Flash Memory
16 MB
Bluetooth
Bluetooth 5
Wi-Fi
Wi-Fi 4 – 802.11b/g/n – 2.4 GHz
Extra Features
  • Battery connector
  • Camera
  • Display
  • Microphone
