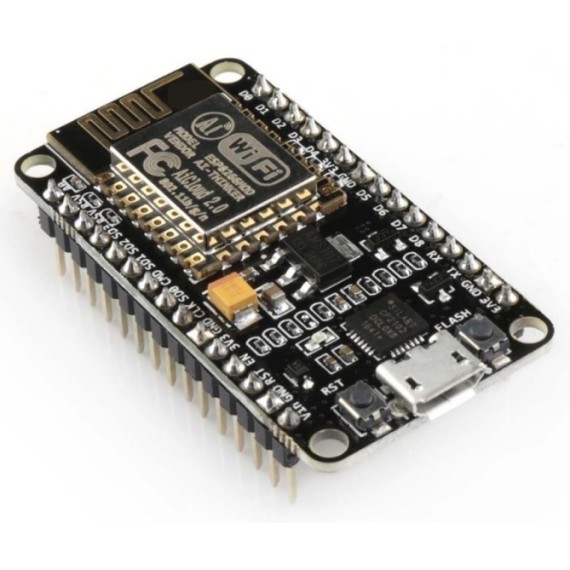

NodeMCU - Lua based ESP8266

by OEM
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines.
19-00058266
Volumetric weight: 0.01kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
9.90
Without VAT 7.98
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 7.92 6.93 5.94
WISHLIST COMPARE

DESCRIPTION

The NodeMcu is an open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines. It has advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware. Code like arduino, but interactively in Lua script. Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style. Can speed up your IOT application developing process greatly.
The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-Wire and ADC all in one board.
Power your developement in the fastest way combinating with NodeMCU Firmware!

EXTRA SPECIFICATIONS

  • USB-TTL included, plug&play

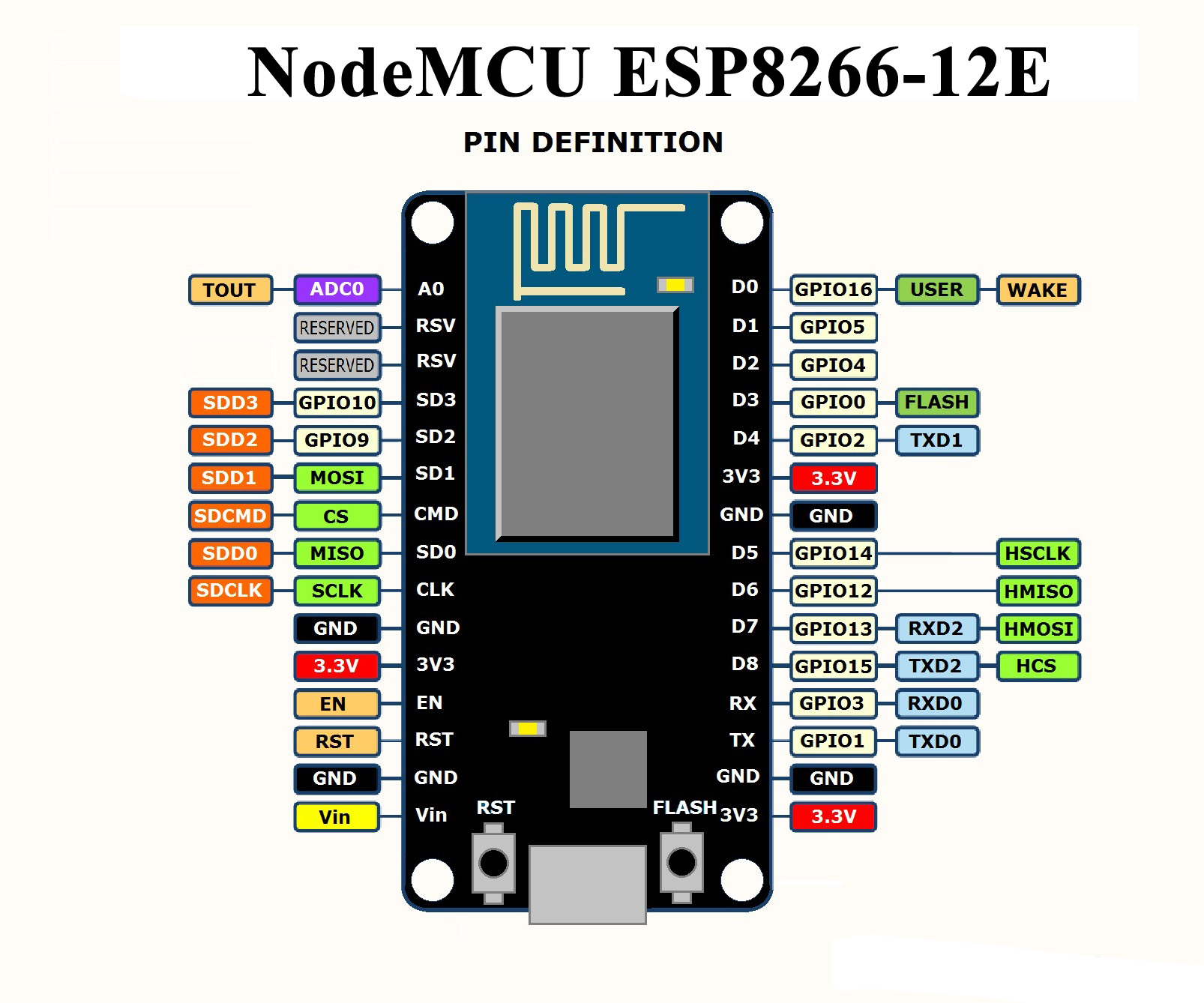

  • 10 GPIO, every GPIO can be PWM, I2C, 1-wire
  • FCC CERTIFIED WI-FI module(Coming soon)
  • PCB antenna

Dimensions

  • PCB: 48.3 x 25.8 x 5mm
  • With Pin Headers: 50 x 25.8 x 12.5mm

Connection

DOCUMENTS
