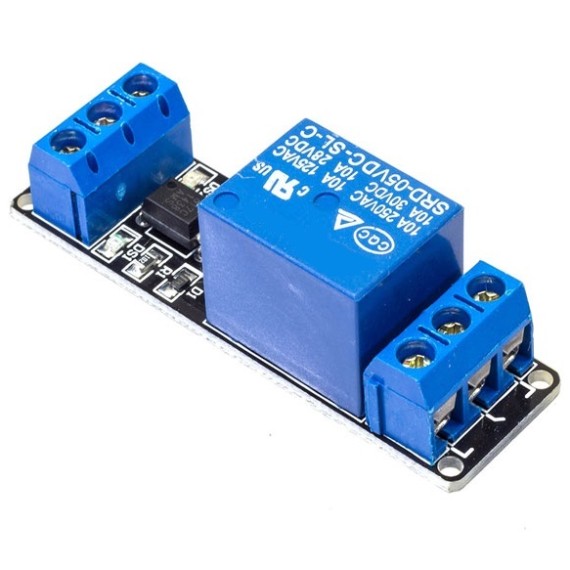

Relay Module - 1 Channel 5V Low Level Trigger (Screw Terminals)

by OEM
This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation...
19-00010785
Gross Weight: 0.02kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
1.90
Without VAT 1.53

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine.

The inputs of 1 Channel 5V 10A Relay Module are isolated to protect any delicate control circuitry.

The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load.

A wide range of microcontrollers such as Arduino, AVR, PICARM and so on can control it.

SPECIFICATIONS

Rated Coil Voltage:
5VDC
Contact Current Max. :
10A
Type / Contacts Config.:
  • SPDT
  • Module

Notes

  • On the high level and low level-triggered mode, friends who do not understand, have a look
    • High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered a way;
    • Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way  1-channel relay module connection.

EXTRA SPECIFICATIONS

  • Operating Voltage(VDC): 5
  • Max. Current(mA): 20
  • Channel: 1
  • Current Capacity at AC250V: 10A
  • Current Capacity at DC30V: 10A

FEATURES

  • High impedance controller pin
  • Pull-down circuit for the avoidance of malfunction
  • One normally closed contact and one normally open contact
  • Triode drive, increasing relay coil
  • Power supply indicator lamp
  • Control indicator lamp
  • With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation

Dimensions

  • 56x17x16mm
