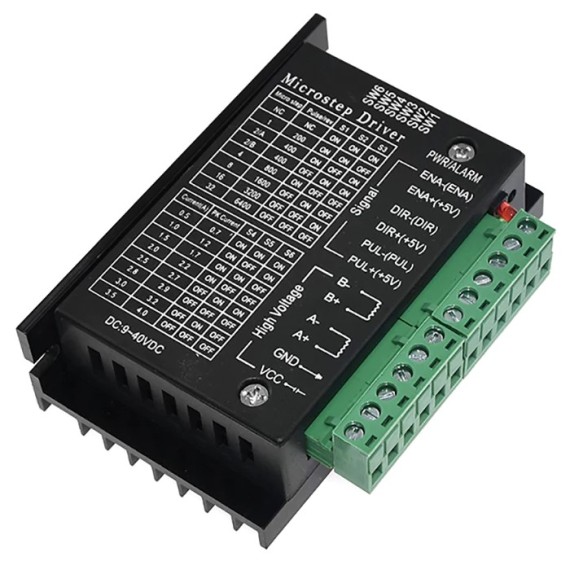

Stepper Motor Driver TB67S109A - Encased

by OEM
The TB67S109A stepper drive is an upgraded version of the TB6600, with higher segments up to 32, suitable for high-resolution applications. This update to...
39-00013296
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
12.80
Without VAT 10.32
+
WISHLIST COMPARE

DESCRIPTION

The TB67S109A stepper drive is an upgraded version of the TB6600, with higher segments up to 32, suitable for high-resolution applications. This update to the TB67S109A has the same practicality as the TB6600 4A driver. But its appearance is different from the simple TB6600 4A Stepper Motor Driver.

The TB67S109A stepper motor Driver Controller 4A 9 - 40V TTL 32 Micro-Step CNC Single-Axis Based on the TB67S109AFTG chip. This driver controller is suitable for the construction of not only amateur CNC systems but also professional ones based on high power motors.



NOTES

  • Applicable stepper motor: 42,57,86 type 2phase 4-phase (4-wire 6 wire line 8)

SPECIFICATIONS

Driver Type:
  • Stepper
Max. Current per Channel:
4A

SPECIFICATIONS

  • Power Supply:  9V - 42V DC
  • Output current: 0.3A - 4Α (peak value of 4A)
  • Micro Step: 6 subdivision modes available, up to 32 segmentse
  • Maximum PWM frequency: 200kHz
  • Adjustments for the maximum current of the LED: 0.5A - 4A
  • Hold Current Adjustment: 50% or 100%
  • Operating temperature: -10 to + 45 ° С

FEATURES

  • H-bridge bipolar constant phase flow driven eight output current optional, the maximum output current: 4.0A.
  • Τhe input signal high-speed optical isolation.
  • Common anode single pulse interface standard.
  • Offline hold function.
  • Semi-enclosed chassis can adapt to more hard environment.
  • Provide energy-efficient semiautomatic current lock function.
  • Built-in temperature protection and overcurrent protection.
