SparkFun Tri-Axis Gyro Breakout - L3G4200D

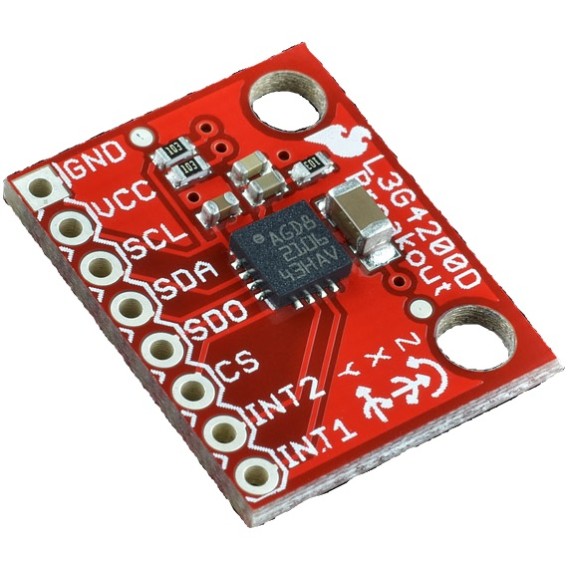

This is a breakout board for the L3G4200D low-power three-axis angular rate sensor.
03-00010612
Gross Weight: 0.01kg
Company: Sparkfun
Made in: USA
In Stock
Ships in 24 Hours
No stock in retail store
From 58.50
39.16
Without VAT 31.58
Profit: 19.34 (33%)
On sale
+
WISHLIST COMPARE

DESCRIPTION

This is a breakout board for the L3G4200D low-power three-axis angular rate sensor. The L3G4200D is a MEMS motion sensor and has a full scale of ±250/±500/±2000 dps and is capable of measuring rates with a user-selectable bandwidth. These work great in gaming and virtual reality input devices, GPS navigation systems and robotics.

Not sure which gyro is right for you? Our Accelerometer and Gyro Buying Guide might help!

SPECIFICATIONS

Sensor Type:
  • Gyroscope
Typical Input Voltage:
  • 3.3VDC
Oparating Current:
6.1mA
Interface:
  • Digital
Communication Protocol:
  • I2C
  • SPI

EXTRA SPECIFICATIONS

  • Three selectable full scales (250/500/2000 dps)
  • I2C/SPI digital output interface
  • 16 bit-rate value data output
  • 8-bit temperature data output
  • Wide supply voltage: 2.4 V to 3.6 V
  • Low voltage-compatible IOs (1.8 V)
  • Embedded power-down and sleep mode
  • Embedded temperature sensor
  • High shock survivability
