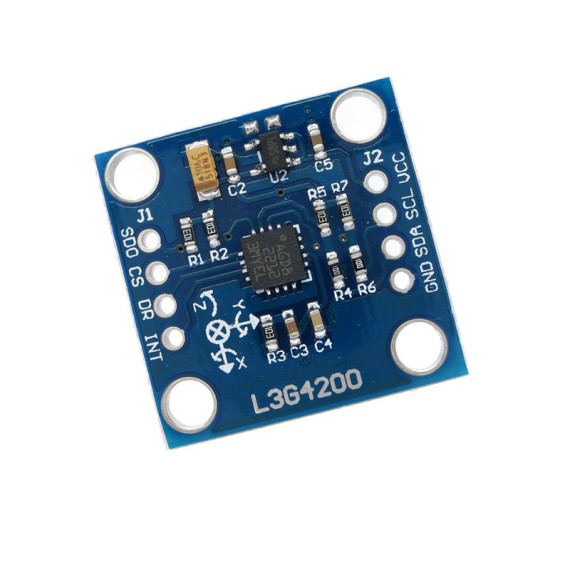

Triple Axis Gyroscope - L3G4200D

από OEM
3-axis gyroscope, providing you with very high resolution (16 bit) measurements at up to 2000 dps. The gyroscope measures how much the device is...
19-00013231
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: GY-50
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 3.84 3.36

ΠΕΡΙΓΡΑΦΗ

3-axis gyroscope, providing you with very high resolution (16 bit) measurements at up to 2000 dps.

The gyroscope measures how much the device is rotating around all three axis, the range is user selectable and so can be adjusted to suit your application.

Outputs data over either I2C or SPI. If you choose to use the device in I2C, there are handy soldering jumpers available on the board to choose the address.

The device also features a 32 count first in first out (FIFO) buffer, allowing you to request the data in batches, rather than having to constantly query the device. This frees up processor cycles for more calculations, whilst still maintaining a high bandwidth.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
GY-50
Μικτό Βάρος:
0.003kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Γυροσκόπιο
Τυπική Τάση Εισόδου:
  • 3.3VDC
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Sensing Range: Three selectable full scales (250/500/200 dps)
  • Interface: I2C/SPI Digital
  • Voltage Supply: 2.4V ~ 3.6V
  • Utilized IC: L3G4200D
  • Output Lines: Two Digital Output Lines (Interrupt and data ready)
  • Operating Temperature: -40C ~ 85C
  • Dimensions: 23x23mm
