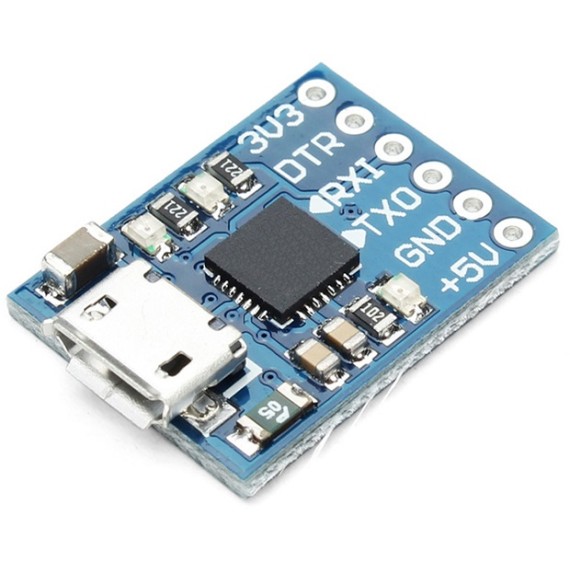

USB to Serial Module - CP2102

by OEM
This miniature, pretty and high quality module is everything you need to convert your USB connection to a serial UART TTL used for many purposes including...
19-00090173
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
3.60
Without VAT 2.90
+
WISHLIST COMPARE

DESCRIPTION

This miniature, pretty and high quality module is everything you need to convert your USB connection to a serial UART TTL used for many purposes including arduino and many other boards interface. CP2102 its highly integrated, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM and asynchronous serial data bus (UART) Supports baud rates from 300bps ~ 1Mbps Connections pins are 3.3V, DTR, RXI, TXO, GND and 5V from USB Comes with 500mA fuse to protect you from mistakes! 5V supply @ 500mA & 3.3V supply @ 100mA (on chip regulator) Board dimensions less than a square inch, more precisely 16*20mm High quality blue PCB and components.

SPECIFICATIONS

  • USB Interface: micro USB connector
  • Operating Voltage: 5V.
  • Logic Voltage: 5V.
  • 3.3V power supply output current: 100mA
  • Pins output method: 6P-2.54mm pin header
  • Serial baud rate: Up to 115200bps.
  • Support USB1.1, USB2.0
  • USB to serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, Linux,MAC

FEATURES

  • Embedded USB transceiver, no external circuit needed
  • Containing clock circuit, no external circuit needed
  • Contains power-on reset circuit
  • The on-chip voltage regulator supply 3.3V@ 100mA output
  • Meet the USB2.0 specification requirements
  • SUSPEND pins support USB suspend state
  • Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
  • Support data format is 8 data bits, 1 stop bit and the parity bit
  • Connotation 512 byte receive buffer and 512 byte transmit buffer
  • Supports hardware or X-ON / X-OFF Handshake
  • FTDI compactible

Διαστάσεις

  • 21.5 x 15.8 x 3.7mm (Without pins)

Το κιτ περιέχει

  • 1x CJMCU CP2102 USB To TTL/Serial Module UART STC Downloader
  • 1x Pin header
