Waveshare 10 DOF IMU Sensor

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your...
31-00012476
Gross Weight: 0kg
Company: Waveshare
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
19.90
Without VAT 16.05
+
WISHLIST COMPARE

DESCRIPTION

10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.

SPECIFICATIONS

Sensor Type:
  • Accelerometer
  • Barometric Pressure
  • Compass
  • Gyroscope
  • IMU
  • Magnetometer
  • Temperature
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
3.2mA
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Power: 3.3V~5.5V (internal voltage regulation with low dropout)
  • Accelerometer
    • Resolution: 16 bit
    • Measurement range (configurable): ±2, ±4, ±8, ±16g
    • Operating current: 450uA
  • Gyroscope
    • Resolution: 16 bit
    • Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
    • Operating current: 3.2mA
  • Compass/Magnetometer
    • Resolution: 14bit
    • Measurement range: ±4800µT
    • Operating current: 280uA
  • Barometric pressure sensor
    • Barometric resolution: 0.0016hPa
    • Temperature resolution: 0.01°C
    • Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
    • Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
    • Operating current (1Hz update rate, ultra-low power mode): 2.8uA

FEATURES

  • MPU9250: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
    • Internal Digital Motion Processing™ (DMP™) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc.
    • Comparing with MPU6050, it is lower power consumption, and more suitable for wearable devices
  • BMP280: barometric pressure sensor
    • Embedded temperature sensor for temperature compensation
    • Comparing with BMP180, it is lower power consumption, and higher performance
  • You can get the 10 DOF data through I2C interface

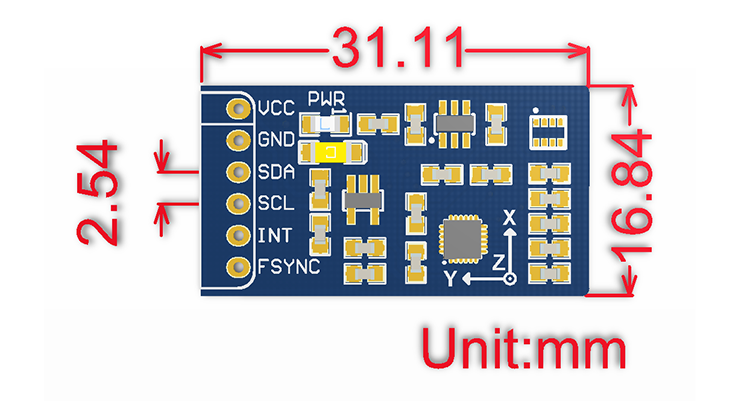

Διαστάσεις

Συνδεσμολογία

PIN NO. SYMBOL DESCRIPTION
1 VCC 3.3V~5.5V power supply
2 GND power ground
3 SDA I2C data pin
4 SCL I2C clock pin
5 INT MPU9250 digital interrupt output
6 FSYNC MPU9250 frame sync signal
