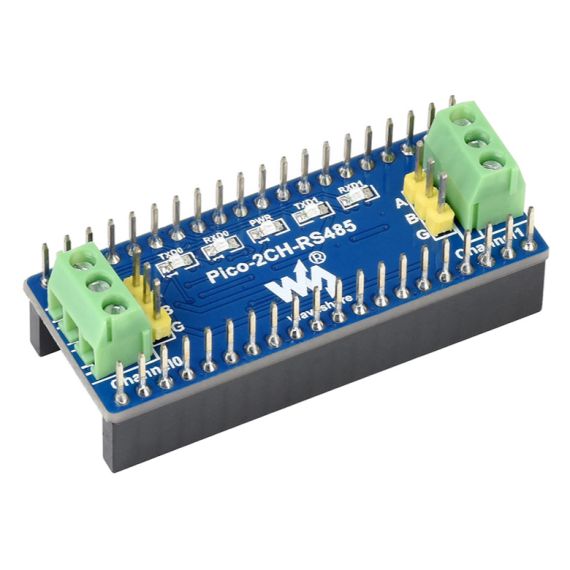

Waveshare 2-Ch RS485 Module for Pico - UART to RS485

31-00019717
Pico-2CH-RS485
ΚατασκευαστήςWaveshare Part NumberPico-2CH-RS485
Διαθέσιμο
Αποστολή σε 24 ώρες
€860
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is a 2-channel RS485 module designed for the Raspberry Pi Pico. It features the SP3485 RS485 transceiver and communicates via the UART bus.

Features
  • Onboard female pin header for direct attaching to Raspberry Pi Pico and male pin header for stacking other modules.
  • Using UART bus, easily converting UART to RS485, or vice versa.
  • Dual-channel design, each channel leads to two interfaces, which is convenient for users to choose from.
  • On-board TVS (transient voltage suppression tube), RS485 communication can effectively suppress the surge voltage and transient peak voltage in the circuit.
  • Comes with online development resources and manuals (Raspberry Pi Pico C/C++ and MicroPython examples).
Technical data
  • Operating voltage: 3.3V
  • Communication bus: UART
  • RS485 transceiver: SP3485
  • Baudrate: 300~500000bps
  • Dimensions: 52.5mm × 21mm
Package contents
  • Pico-2CH-RS485 ×1


Note: Pico-LCD-0.96 module is not included in the package

What's on board
  1. RS485 bus interface: 2-channel RS485
  2. UART status indicators: Channel 0/1 RX/TX indicators
  3. Power indicator
  4. SP3485 RS485 transceiver
  5. SMAJ12CA: transient suppress diode array
  6. Raspberry Pi Pico header




Κατασκευαστής
Waveshare
Part Number
Pico-2CH-RS485
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.01kg
Συμβατότητα
  • Raspberry Pi Pico
Τύπος HAT
  • RS232/RS485
