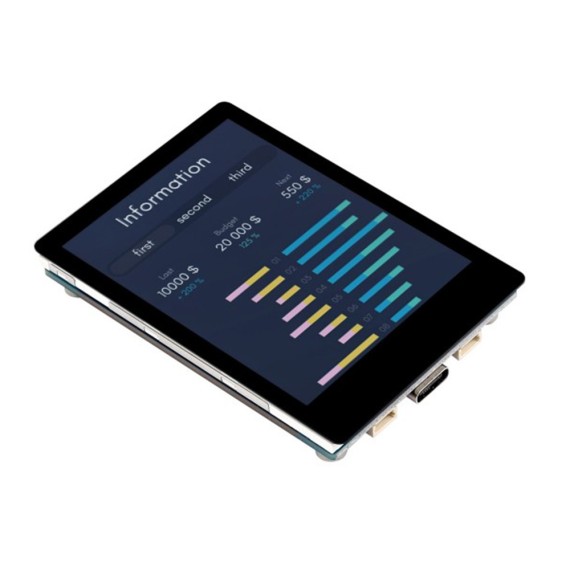

Waveshare ESP32-S3 with IPS Touch Display 2.8"

31-00027690
ESP32-S3-Touch-LCD-2.8
ΚατασκευαστήςWaveshare Part NumberESP32-S3-Touch-LCD-2.8
Κατόπιν παραγγελίας
Διαθέσιμο σε 45-60 ημέρες
€3280
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

ESP32-S3-Touch-LCD-2.8 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.


  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • Onboard 2.8inch capacitive touch display, 240×320 resolution, 262K color
  • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
  • Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
  • Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

What's On Board

  1. ESP32-S3R8 dual-core processor, up to 240MHz operating frequency
  2. 16MB Flash
  3. QST attitude sensor QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
  4. RTC chip PCF85063 RTC chip
  5. PCM5101 audio decoder
  6. Amplifier chip
  7. Volume adjustment knob
  8. Battery recharge manager
  9. ME6217C33M5G Low dropout regulator, 800mA output (Max.)
  10. Onboard ceramic antenna
  11. IPEX1 connector and switching resistor Switching to use external antenna via resoldering the resistor
  12. TF card slot Supports TF card up to 16GB
  13. Battery power supply control button Relevant driver program is required
  14. RESET button
  15. BOOT button
  16. USB Type-C port
  17. 12PIN multi-functional pin header
  18. I2C header
    connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
  19. UART header
  20. MX1.25 battery header MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
  21. RTC battery header for connecting rechargeable RTC battery
  22. Speaker header Comes with 8Ω 2W 2030 speaker
  23. Power indicator
  24. Charge indicator Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)


Κατασκευαστής
Waveshare
Part Number
ESP32-S3-Touch-LCD-2.8
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.023kg
