Waveshare LC29H(DA) Dual-band GPS HAT - RTK Rover

31-00025279
LC29H(DA) GPS/RTK HAT
CompanyWaveshare Part NumberLC29H(DA) GPS/RTK HAT
In Stock
Ships in 24 Hours
7480
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

The LC29H series can track L1+L5 dual-frequency and multi-GNSS signals, reducing multipath effects in urban canyons and improving positioning accuracy while maintaining low power consumption. With built-in LNA and SAW filter to achieve high sensitivity and strong anti-interference capability. Adopts dual-band positioning and RTK technology to meet the need of centimeter-level high-precision positioning. Ideal for real-time tracking systems and sharing economy applications, helping to develop applications such as drones, smart farm machinery, shared two-wheelers, etc.

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports simultaneous tracking of L1+L5 dual-band satellite signals, reducing multipath effects in urban canyons and improving positioning accuracy
  • Supports concurrent receiving of multi-GNSS systems (GPS, BDS, GLONASS, Galileo and QZSS) while maintaining low power consumption
  • Built-in low noise amplifier and acoustic surface filter to realize -165dBm high sensitivity and enhance anti-interference performance
  • Supports multi-frequency active interference cancellation, effectively suppressing or eliminating narrowband signal (WiFi/2/3/4/5G) interference to ensure navigation accuracy
  • A-GNSS (Assisted GNSS) support, reducing the time to first fix (TTFF) with cold start when powered on to 5 seconds
  • Support QGNSS software, easy to set various module functions
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • Onboard 4 LED indicators for module operating status
  • Comes with online development resources and manual (Python examples for Raspberry Pi/Jetson Nano)




RTK Mobile Station, RTK base station, Centimeter positioning

The LC29H(BS) module is used as an RTK Base Station, while the LC29H(DA) module is used as an RTK Mobile Station. By setting up continuous running reference stations on the ground known fixed coordinates using the LC29H (BS) module, or by paid RTK base station enhanced services, transmitting GNSS calibration value to LC29H (DA) terminals which uploading rough positioning data, the terminals, with errors like multipath refraction, is able to calculate error value in real time, for centimeter-level positioning in seconds.



Technical data
ProductLC29H(AA) GPS HATLC29H(DA) GPS/RTK HATLC29H(BS) GPS/RTK HATZED-F9P GPS-RTK HAT
Frequency bandGPS/QZSS: L1C/A, L5
BDS: B1I, B2a
Galileo: E1, E5a
GLONASS: L1
GPS/QZSS: L1C/A, L2C
BDS: B1I, B2I
Galileo: E1B/C, E5a
GLONASS: L1OF, L2OF
NUMBER OF CONCURRENT GNSSGPS/QZSS+BDS+Galileo+GLONASS
SBAS (WAAS, EGNOS, MSAS, GAGAN)support-support
RTK Function-RTK RoverRTK BaseRTK Rover and Base
Positioning AccuracyPVT1m CEP-1.5m CEP
RTK-0.01m+1ppm CEP-0.01m+1ppm CEP
Navigation Update RatePVT1~10Hz-1~10Hz
RTK-1Hz-1~8Hz
RAW1Hz1~20Hz
RTK Convergence Time-<10s-<10s
Time to first fix (AGNSS Off)Cold starts26s-24s
Hot starts1s-2s
Aided starts16s-2s
Time to first fix (EASY on)2s-
Time to first fix (AGNSS On)Cold starts5s-TBD
Hot starts5s-TBD
Aided starts5s-TBD
SensitivityTracking and navigating-165dBm-167dBm
Re-acquisition-159dBm-157dBm-159dBm-160dBm
Cold starts-147dBm-145dBm-147dBm-148dBm
Velocity accuracy0.2m/s-0.05m/s
PPS accuracy20ns-30ns
Dynamic performanceAcceleration (Max): 4g
Velocity (Max): 500m/s
LC29H(XX) HAT Altitude (Max): 10000m
ZED-F9P GPS-RTK HAT Altitude (Max):50000m
Communication interfaceLC29H(XX) HAT:UART(9600~3000000bps, 115200bps by default),I2C(Max 400KHz)
ZED-F9P GPS-RTK HAT:USB, UART(4800~921600bps, 9600bps by default), I2C(Max 400KHz), SPI(5MHz)
ProtocolNMEA 0183 V4.10, RTCM 3.xNMEA 0183 V4.10,UBX, RTCM 3.3
Power supply5V
Overall Current<40mA@5V (Continue mode)
Operating temperature-40~85℃


What's on board

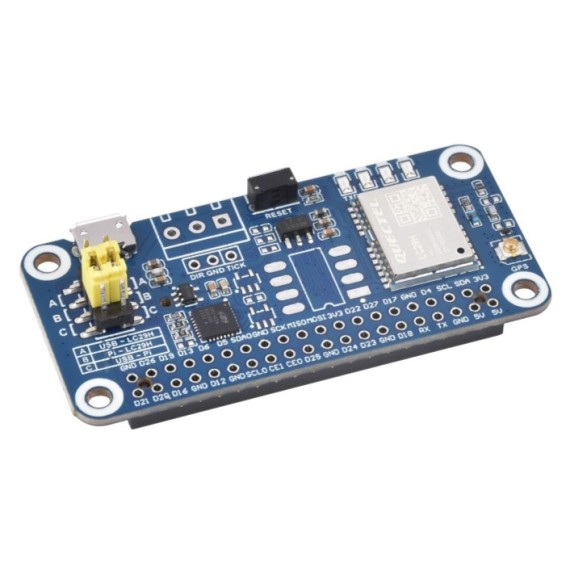

1. LC29H module
2. RT9166A-28PXL, 5V to 2.8V LDO chip
3. CP2102N, USB to UART chip
4. Raspberry Pi 40PIN GPIO header for connecting with Raspberry Pi
5. UART selection jumper: (A) control the LC29H via USB to UART, (B) control the LC29H via Raspberry Pi, (C) access Raspberry Pi via USB to UART
6. IPEX 1 antenna connector
7. Micro USB interface
8. RT9193-33PB, 5V to 3.3V LDO chip
9. RESET button
10. Status Indicators (PWR, RXD/TXD, PPS)
11. NDC7002N, I2C voltage translator
12. ML1220 Battery holder


Included in the package

1. 1× OPTIONS LC29H GPS HAT
2. 1× 2x20PIN female header
3. 1× GPS External Antenna (D)
4. 1× IPEX 1 to SMA cable ~17cm
5. 1× Screws pack
