Development Board ESP32 & Ethernet - WT32-ETH01, Header: Without Headers

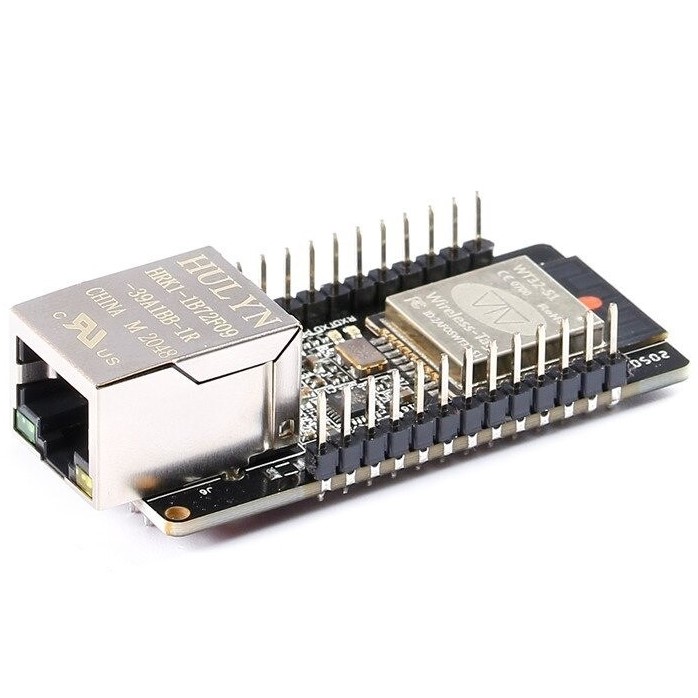

Development Board ESP32 & Ethernet - WT32-ETH01

Κωδικός:

08-00011232

Part Number: WT32-ETH01 (WITHOUT PIN)

Header:

With Headers Without Headers

Part NumberWT32-ETH01 (WITHOUT PIN) SoC SeriesESP32

Διαθέσιμο

Αποστολή σε 24 ώρες

€19⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Προβολη ολων των παραλλαγών ως λίστα

Column filling

Ταξινόμηση Τιμή	Ταξινόμηση Διαθεσιμότητα	Ταξινόμηση Κωδικός	Ταξινόμηση Header
€19⁹⁰	Διαθέσιμο + − ΑΓΟΡΑ	08-00011232	Header: Without Headers
€19⁹⁰	Διαθέσιμο + − ΑΓΟΡΑ	08-00011233	Header: With Headers

Περιγραφή
Χαρακτηριστικά

The WT32-ETH01 is a compact and versatile development board designed for IoT and networked applications. It integrates the powerful ESP32 microcontroller with built-in Wi-Fi and Bluetooth capabilities, alongside an Ethernet interface for wired network connectivity. This board is well-suited for projects requiring reliable and fast data communication over LAN or the internet.

Key Features:

ESP32 Microcontroller:
- Dual-core 32-bit processor.
- Supports both Wi-Fi (802.11 b/g/n) and Bluetooth (Classic + BLE).
- High performance with a clock speed of up to 240 MHz.
Ethernet Support:
- Integrated Ethernet PHY module (LAN8720A).
- Supports high-speed wired connections, ideal for applications needing low-latency and stable networking.
Flexible Power Options:
- Operates on a 5V power supply.
- Supports both USB and external power inputs.
GPIO and Peripheral Access:
- Multiple GPIO pins available for connecting sensors, actuators, and other peripherals.
- Compatible with UART, SPI, I2C, and PWM interfaces.
Compact Design:
- Small form factor makes it suitable for embedded applications or compact installations.

Applications:

Home automation.
Industrial IoT systems.
Network bridges and gateways.
Smart energy management.
Real-time monitoring systems.

The WT32-ETH01 is an excellent choice for developers looking to build networked devices with flexibility in both wireless and wired communication. Its compatibility with the robust ESP-IDF development framework and Arduino IDE further simplifies project development.
