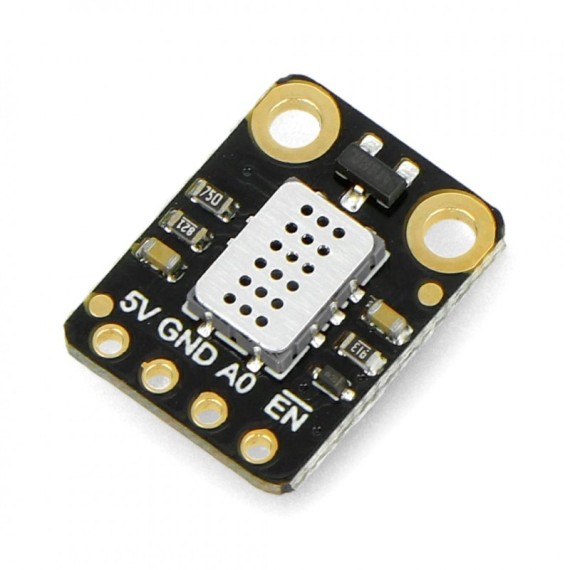

Fermion MEMS Gas Sensor - MiCS-2714

από DFROBOT
This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot. The sensor uses MEMS technology to support gas concentration...
25-00016344
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0441
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+

ΠΕΡΙΓΡΑΦΗ

This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot.

The sensor uses MEMS technology to support gas concentration detection of NO, NO2 and H2.

The matching sample code integrates the concentration conversion formula of various gas to facilitate the testing and use of sensors. The product supports 5V power supply, analog voltage output, and has power supply enable/disable pins for low power consumption.

Board Overview

Connect Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0441
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 5VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Detection of Physical Quantities: Gas concentration or gas leakage of NO, NO2, H2
  • Operating voltage: 4.9~5.1V DC
  • Power dissipation: 0.45W
  • Output signal: Analog quantity
  • Measuring range:
    • 1 – 1000ppm(Hydrogen H2)
    • 0.05 – 10ppm(Nitrogen dioxide NO2 )
  • Working temperature: -30~85℃
  • Working humidity: 5~95%RH (No condensation)
  • Storage temperature: -40~85℃
  • Lifespan: >2 years(in the air)
  • Circuit board size:12mm×16mm
  • Mounting hole size:Inner diameter 2mm/outer diameter 4mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Integrates the concentration conversion formula
  • Low power consumption

Applications

  • Gas leak detection
  • Gas safety equipment
  • Air environment detection
