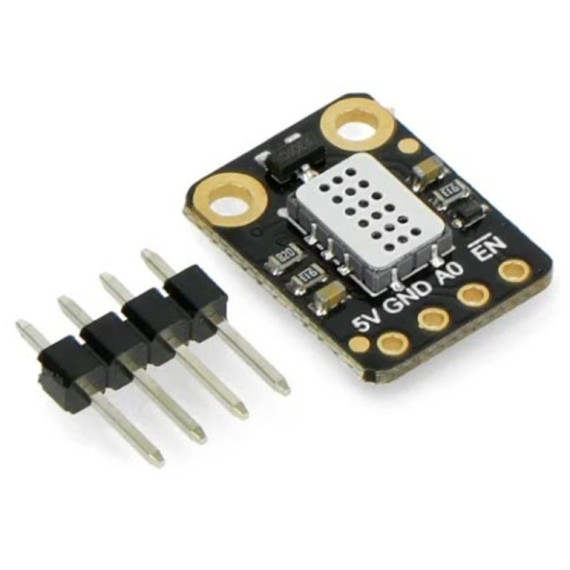

Fermion MEMS Gas Sensor - MiCS-5524

από DFROBOT
This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot. The sensor uses MEMS technology to   support gas concentration...
25-00016341
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0440
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+

ΠΕΡΙΓΡΑΦΗ

This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot.

The sensor uses MEMS technology to support gas concentration detection of CO, CH4, C2H5OH, C3H8, C4H10, H2, H2S and NH3. The matching sample code integrates the concentration conversion formula of various gas to facilitate the testing and use of sensors.

The product supports 5V power supply, analog voltage output, and has power supply enable/disable pins for low power consumption.

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0440
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 5VDC

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Detection of Physical Quantities: Gas concentration or gas leakage of CO, CH4, 2H5OH, C3H8, C4H10, H2, H2S, NH3
  • Operating voltage: 4.9~5.1V DC
  • Power dissipation: 0.45W
  • Output signal: Analog quantity
  • Measuring range:
    • 1 – 1000ppm (Carbon monoxide CO)
    • 10 – 500ppm (Ethanol C2H5OH)
    • 1 – 1000ppm (Hydrogen H2)
    • 1 – 500ppm (Ammonia NH3)
    • >1000ppm (Methane CH4)
  • Working temperature: -30~85℃
  • Working humidity: 5~95%RH (No condensation)
  • Storage temperature: -40~85℃
  • Lifespan: >2 years (in the air)
  • Circuit board size:12mm x 16mm
  • Mounting hole size:Inner diameter 2mm/ outer diameter 4mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Support a variety of harmful gas detection
  • Integrate the calculation formulas of various gas concentration
  • Low power consumption
  • I2C digital output
  • Compatible with the 3.3~5.5V master controller

Applications

  • Gas leak detection
  • Gas safety equipment
  • Air environment detection
