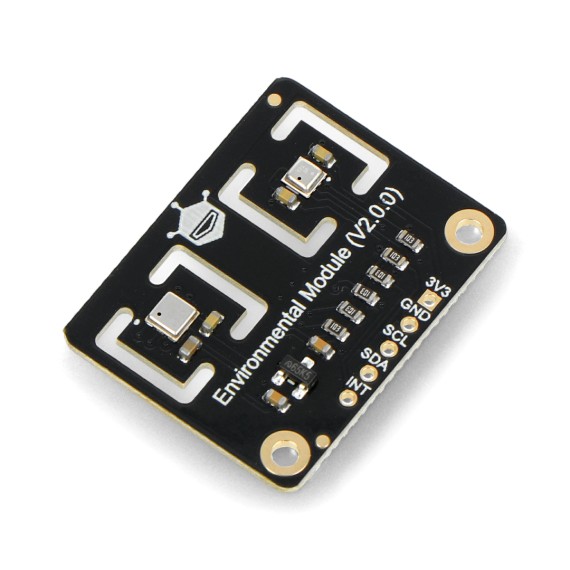

Fermion Multi-function Environmental Module - ENS160+BME280

25-00016315
SEN0335
CompanyDFRobot Part NumberSEN0335
In Stock
Ships in 24 Hours
3680
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Build up a simple environmental monitor station with this multi-function environment sensor! Based on the combination of the ENS160+BME280 chip, this module features high accuracy, I2C interface, and fast Measurement. The BME280 can provide temperature and humidity compensation for ENS160 to improve the whole accuracy to a certain extent. It can be used to detect temperature, humidity, barometric pressure, altitude, TVOC and eCO2.

ENS160 is an air quality sensor based on ScioSense's new ENS160 sensor chip, which is specifically designed for indoor air quality monitoring and offers detection of multiple IAQ data (TVOC, eCO2, AQI). That the innovative TrueVOC™ technology combines the metal oxide (MOX) technology brings this sensor superior accuracy, fast response, anti-interference, etc.

BME280 is an environmental sensor that combines temperature sensor, humidity sensor and barometer in one board. It has high precision, multiple functions, small size, etc. The sensor offers ±0.5℃ temperature error and ±2%RH humidity error. It provides very stable performance within the detection temperature range. Besides, the offset temperature coefficient is ±1.5 Pa/K, equiv. to ±12.6 cm at 1 °C temperature change.

  • Operating Voltage: 3.3V
  • Working Current: <20mA
  • Dimension: 22x28mm
  • ENS160 Parameter:
    • Preheat Time: <3 minutes
    • I2C Address: 0x53(default), 0X52
    • Operating Temperature Range: -40℃~85℃
    • Operating Humidity Range: 5%RH~95%RH
    • eCO2 Measuring Range: 400ppm~65000ppm
    • TVOC Measuring Range: 0ppb~65000ppb
  • BME280 Parameter:
    • I2CAddress:0x76(default), 0X77
    • Operating Temperature: -40℃~85℃
    • Temperature Measuring Range: -40℃~+85℃, resolution of 0.1℃, deviation of ±0.5℃
    • Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH
    • Pressure Measuring Range: 300~1100hPa

  • Short preheat time, low power consumption
  • Fast response
  • Highly integrated
  • Support for measuring multiple environmental data

Applications

  • Environment Monitor
  • Air Purifiers
  • Smart Home
  • Ventilation System
  • Weather Forecast
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
G. Weight
0.017kg
Sensor Type
  • Gas
Typical Input Voltage
  • 3.3VDC
Oparating Current
20mA
Interface
  • Digital
Communication Protocol
  • I2C
