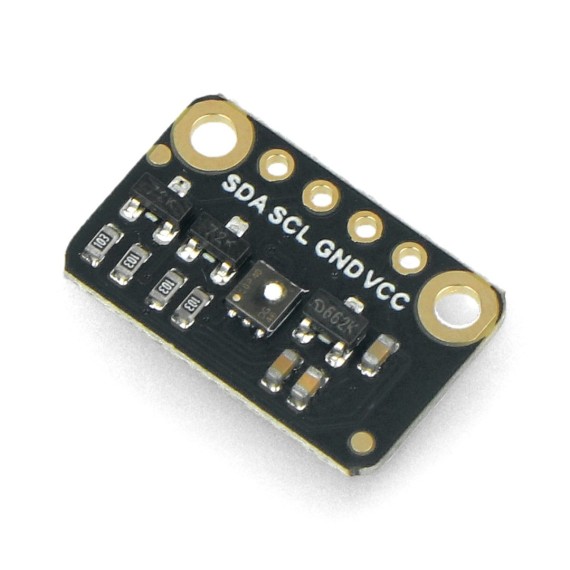

Fermion SGP40 Air Quality Sensor

25-00016332
SEN0392
ΚατασκευαστήςDFRobot Part NumberSEN0392
Διαθέσιμο
Αποστολή σε 24 ώρες
€1800
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion. Based on the Sensirion’s CMOSens® technology, the SGP40 offers a complete sensor system on a single chip, a temperature-controlled micro-hotplate and a humidity-compensated indoor air quality signal. In combination with Sensirion’s powerful VOC algorithm, the sensor signal can be directly used to evaluate indoor air quality. It features low power(2.6mA), and fast response(2s). The data from the sensor can be directly used to evaluate air quality without calibration.

With compact and small body, this Breakout SGP40 Air Quality sensor is very suitable for indoor projects that will be used for a long time, such as refitting air purifiers, kitchen hoods, etc. Besides, we provide you with C and Python libraries for using with different main-controllers.

ΣΗΜΕΙΩΣΕΙΣ

  • VOC index is obtained by converting the detected ethanol equivalent in air.

  • Power Supply: 3.3V~5V
  • Operating Current: 2.6mA
  • Preheat Time: 10S
  • Response Time: 2S
  • Communication: I2C
  • I2C Address: 0x59
  • Operating Temperature Range: -10℃~50℃
  • Storage Temperature Range: 5℃~30℃
  • Operating Humidity Range: 0%RH~90%RH
  • VOC Index: 0-500
  • Measuring Range: 0-1000ppm(Ethanol Equivalent)
  • Dimension: 18x11.5mm

  • Ultra-low Power Consumption(2.6mA)
  • Built-in Temperature and Humidity Compensation, no need to calibrate
  • VOC Index for direct Air Quality Indication

Applications

  • Air Purifiers
  • Kitchen Hoods
  • Demand-controlled Ventilation
  • Thermostats
  • Indoor Air Quality Monitoring
Κατασκευαστής
DFRobot
Part Number
SEN0392
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.017kg
Τύπος Αισθητήρα
  • Αερίων
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
