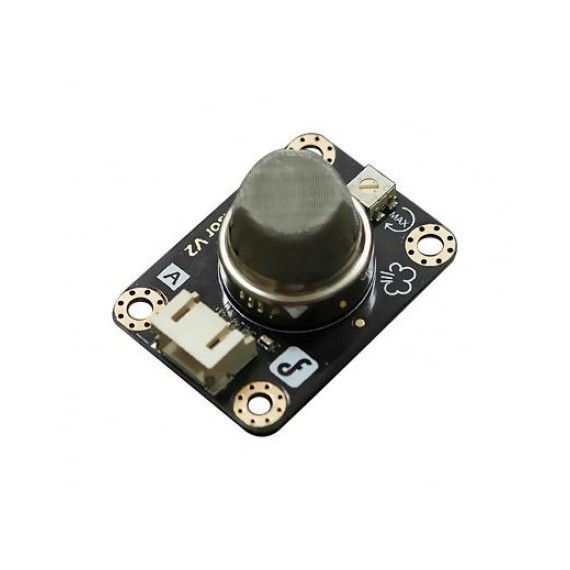

Gravity Analog Hydrogen Gas Sensor (MQ8)

25-00016182
SEN0133
ΚατασκευαστήςDFRobot Part NumberSEN0133
Διαθέσιμο
Αποστολή σε 24 ώρες
€1280
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is an Arduino hydrogen gas sensor. It has high sensitivity to Hydrogen (H2) and less sensitivity to alcohol, LPG, cooking fumes. Hydrogen gas is highly flammable and will burn in air at a very wide range of concentrations

The sensitivity is able to be adjusted by the potentiometer. The output is proportional to the density of the gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontroller

What is Hydrogen? Hydrogen is a chemical element with chemical symbol H and atomic number 1.

  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition:  1-Output  2-GND  3-VCC
  • High sensitivity to Hydrogen (H2)
  • Small sensitivity to alcohol, LPG,cooking fumes
  • Stable and long life
  • Size: 40x20mm

Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
DFRobot
Μικτό Βάρος
0.01kg
Τύπος Αισθητήρα
  • Αερίων
Τυπική Τάση Εισόδου
  • 5VDC
Διασύνδεση
  • Αναλογική
