Gravity Analog LPG Gas Sensor (MQ5)

από DFROBOT

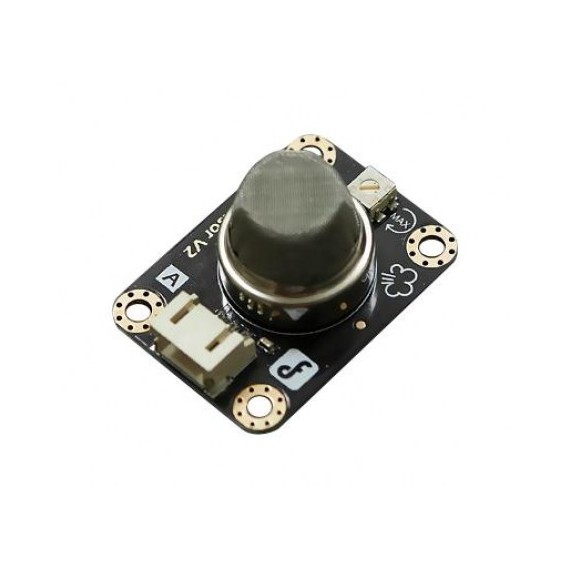

This is an Arduino LPG gas sensor. It has MQ5 probe which is very sensitive with LPG, natural gas , town gas. It is less sensitive with alcohol, cooking...
25-00016180
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0130
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
8.60
Χωρίς ΦΠΑ 6.94
+

ΠΕΡΙΓΡΑΦΗ

This is an Arduino LPG gas sensor. It has MQ5 probe which is very sensitive with LPG, natural gas , town gas. It is less sensitive with alcohol, cooking fumes and cigarette smoke.

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0130
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 5VDC
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition: 1-Output 2-GND 3-VCC
  • High sensitivity to LPG, natural gas, town gas
  • Small sensitivity to alcohol, smoke
  • Fast response
  • Stable and long life
  • Simple drive circuit
  • Size: 40x20mm
