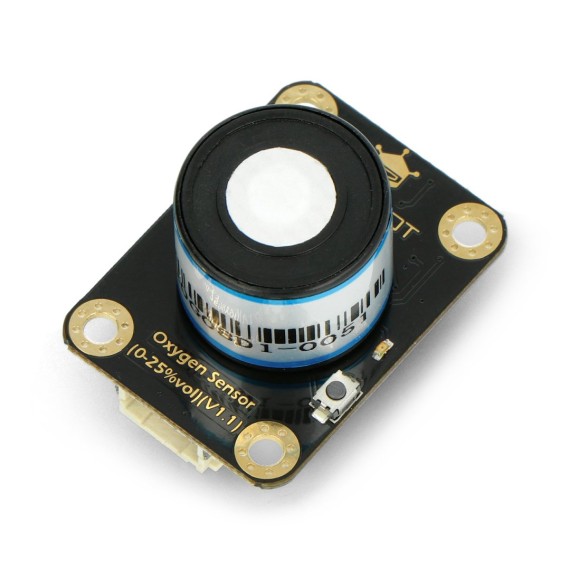

Gravity Electrochemical Oxygen/O2 Sensor (0-25%Vol, I2C)

25-00016245
SEN0322
ΚατασκευαστήςDFRobot Part NumberSEN0322
Εξαντλημένο
€6680
DFRobot
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This Oxygen / O2 Sensor is based on electrochemical principles and it can measure the ambient O2 concentration accurately and conveniently. With high anti-interference ability, high stablility and high sensitivity, this arduino-compatible oxygen / O2 sensor can be widely applied to fields like portable device, air quality monitoring device, and industries, mines, warehouses and other spaces where air is not easy to circulate.

This compact dfrobot oxygen / O2 sensor supports I2C output, it can be calibrated in the air, can accurately measure the oxygen concentration in the environmentit. It is compatible with many mainboards like Arduino Uno, esp32, Raspberry Pi and so on. Its measurement range is 0~25%Vol, and resolution can reach to 0.15%Vol. It supports wide range input voltage: 3.3V to 5.5V. Moreover, the lifetime is as long as 2 years. With simple Gravity interface and practical sample code, you can build your own oxygen / O2 concentration monitor easily and conveniently.

  • Detection of Gas: oxygen / O2
  • Operating Voltage: 3.3 to 5.5V DC
  • Output Signal: I2C output
  • Measurement Range: 0~25%Vol
  • Maximum Measurement limit: 30%Vol
  • Resolution: 0.15%Vol
  • Sensitivity: (0.10±0.05) mA (in the air)
  • Stability: <2% (Every month)
  • Repeatability: <2%
  • Response Time: ≤15 seconds
  • Operating Temperature: -20～50℃
  • Operating humidity: 0～99%RH (no condensation)
  • Pressure Range: standard atmospheric pressure ±10%
  • Lifetime:> 2 years (in the air)
  • Dimension: 37x27x24.5mm
  • Weight:0.037kg

  • High sensitivity
  • I2C Interface
  • Compatible with both 3.3V and 5V micro-controllers
  • Polarity protection
Κατασκευαστής
DFRobot
Part Number
SEN0322
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0kg
Τύπος Αισθητήρα
  • Αερίων
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
