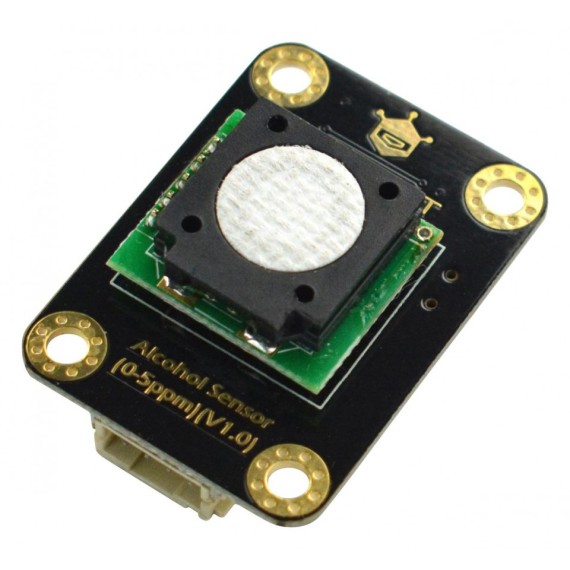

Gravity Factory Calibrated Electrochemical Alcohol Sensor (0-5ppm, I2C&UART)

25-00016248
SEN0376
Διαθέσιμο
Αποστολή σε 24 ώρες
3680
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is an Arduino compatible alcohol sensor module from DFRobot with a 0-5ppm measuring range, supporting I2C and UART outputs. Aiming at fast and accurate detection of alcohol gas concentration in the air, the sensor is well applicable to the small alcohol concentration measurement in the breathalyzer, smart vehicle, and so on.

Based on the electrochemistry principle, this alcohol sensor has been calibrated before the factory. It is characterized by strong anti-interference, high stability, and sensitivity and up to 2 years of service life. The module supports 0.01ppm(10ppb) resolution and 3.3~5.5V wide-range voltage input and works well with mainstream controllers like Arduino, ESP32, and Raspberry Pi. With the easy-to-use Gravity interface and the sample program provided by us, you can conveniently build your alcohol concentration detector using this sensor.

  • Detected Gas: alcohol
  • Interfering Gas: benzene(C6H6), toluene(C7H8), acetic acid(CH3COOH), hydrogen sulfide(H2S), carbon monoxide(CO)
  • Operating Voltage: 3.3~5.5V DC
  • Power: 0.05W(5V)
  • Signal Output: I2C, UART(0~3V)
  • Measuring Range: 0~5ppm
  • Resolution: ≤0.01ppm(10ppb)
  • Preheat Time: ≤3min
  • Response Time: ≤60s
  • Recover Time: ≤60s
  • Operating Temperature: -20~50℃
  • Operating Humidity: 15~90%RH (No condense)
  • Storage Temperature: 0~25℃
  • Service Life: >2 years(In the air)
  • Board Dimension: 27×37mm

Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
DFRobot
Μικτό Βάρος
0.01kg
Τύπος Αισθητήρα
  • Αερίων
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
  • UART
