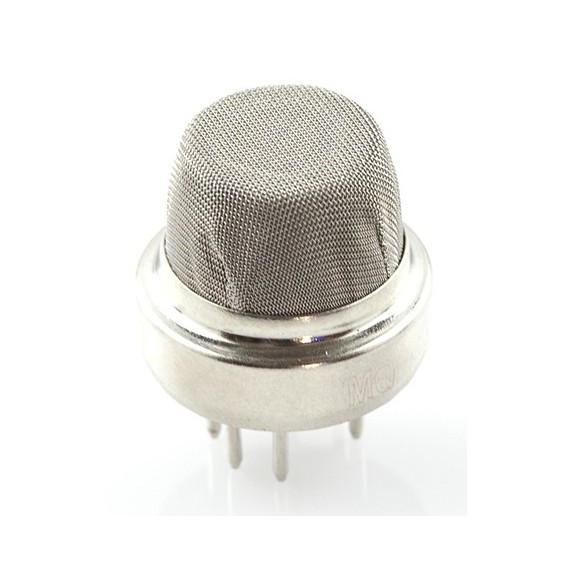

Αισθητήρας Μεθανίου CNG - MQ-4

από OEM

The MQ-4 can detect natural gas concentrations anywhere from 200 to 10000ppm.

19-00019404
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
2.90
Χωρίς ΦΠΑ 2.34
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 2.32 2.03

ΠΕΡΙΓΡΑΦΗ

This is a simple-to-use compressed natural gas (CNG) sensor, suitable for sensing natural gas (composed of mostly Methane [CH4]) concentrations in the air. The MQ-4 can detect natural gas concentrations anywhere from 200 to 10000ppm.

This sensor has a high sensitivity and fast response time. The sensor’s output is an analog resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC.

This sensor comes in a package similar to our MQ-3 alcohol sensor, and can be used with the breakout board below.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.004kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αερίων
Τυπική Τάση Εισόδου:
  • 5VDC
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Sensitive for Methane, CNG Gas
  • The heater uses 5V.
