Waveshare ESP32-S3 Dual-Core Development Board

Κωδικός:

31-00024023

Part Number: ESP32-S3-Pico-M

Headers:

Without Headers With Pre-soldered Headers

ΚατασκευαστήςWaveshare Part NumberESP32-S3-Pico-M

Διαθέσιμο

Αποστολή σε 24 ώρες

€13⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€12.24

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Προβολη ολων των παραλλαγών ως λίστα

Column filling

Ταξινόμηση Τιμή	Ταξινόμηση Διαθεσιμότητα	Ταξινόμηση Κωδικός	Ταξινόμηση Headers
€12⁴⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00023803	Headers: Without Headers
€13⁶⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00024023	Headers: With Pre-soldered Headers

Περιγραφή
Χαρακτηριστικά

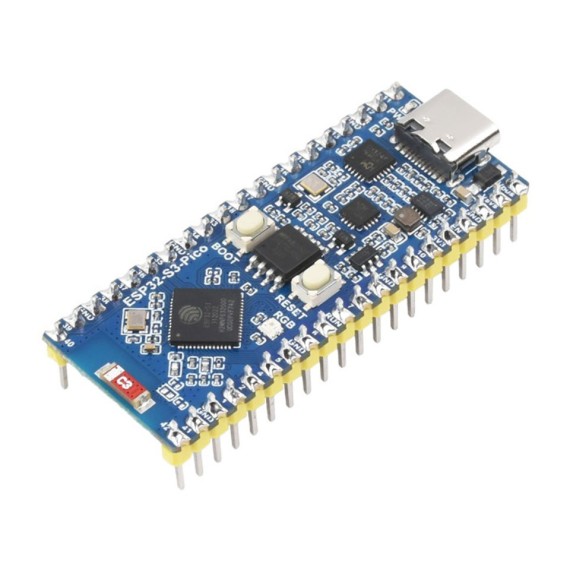

The ESP32-S3-Pico is a compact microcontroller development board featuring multiple digital interfaces. It is powered by the ESP32-S3R2 chip, which includes a dual-core Xtensa 32-bit LX7 processor running at 240MHz, with 512KB of built-in SRAM (TCM) and 2MB of PSRAM. The board integrates CH343 and CH334 chips to support USB and UART development via a USB-C port. It also features the MP28164 high-efficiency DC-DC buck-boost converter, supporting a load current of up to 2A for stable and reliable operation. The board supports various development environments, including ESP-IDF, Arduino, and MicroPython, allowing for easy and quick prototyping and integration into your product.

Key features

Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
27 × multi-function GPIO pins
Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
