Waveshare ESP32-S3 Mini - Wi-Fi & Bluetooth 5

Κωδικός:

31-00025517

Part Number: ESP32-S3-Zero-M

Header:

With Headers Without Headers

ΚατασκευαστήςWaveshare Part NumberESP32-S3-Zero-M SoC SeriesESP32-S3

Διαθέσιμο

Αποστολή σε 24 ώρες

€8²⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€7.38

+ −

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Column filling

Ταξινόμηση Τιμή	Ταξινόμηση Διαθεσιμότητα	Ταξινόμηση Κωδικός	Ταξινόμηση Header
€6⁸⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00025081	Header: Without Headers
€8²⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00025517	Header: With Headers

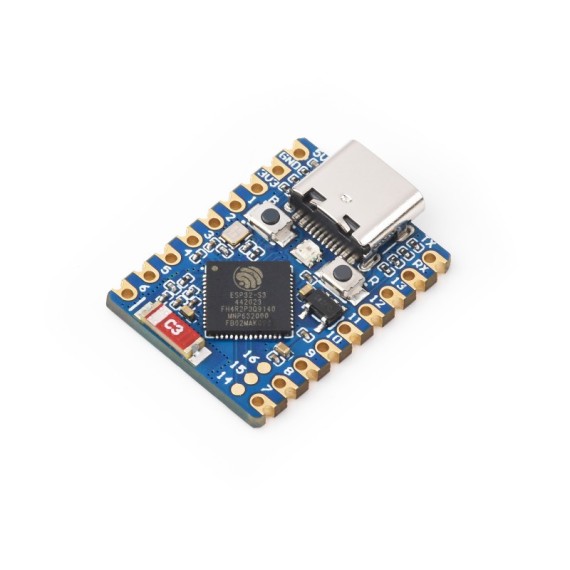

Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5, with onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
