Waveshare ESP32-S3 Touch IPS LCD – 1.47" 172×320

31-00031199
ESP32-S3-Touch-LCD-1.47-M
CompanyWaveshare Part NumberESP32-S3-Touch-LCD-1.47-M
Upon Order
Available in 45-60 days
€1990
Waveshare
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

This ESP32-S3 Touch LCD features the ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, and integrates high-capacity flash and PSRAM. The onboard 1.47-inch IPS display can smoothly run GUI programs such as LVGL.

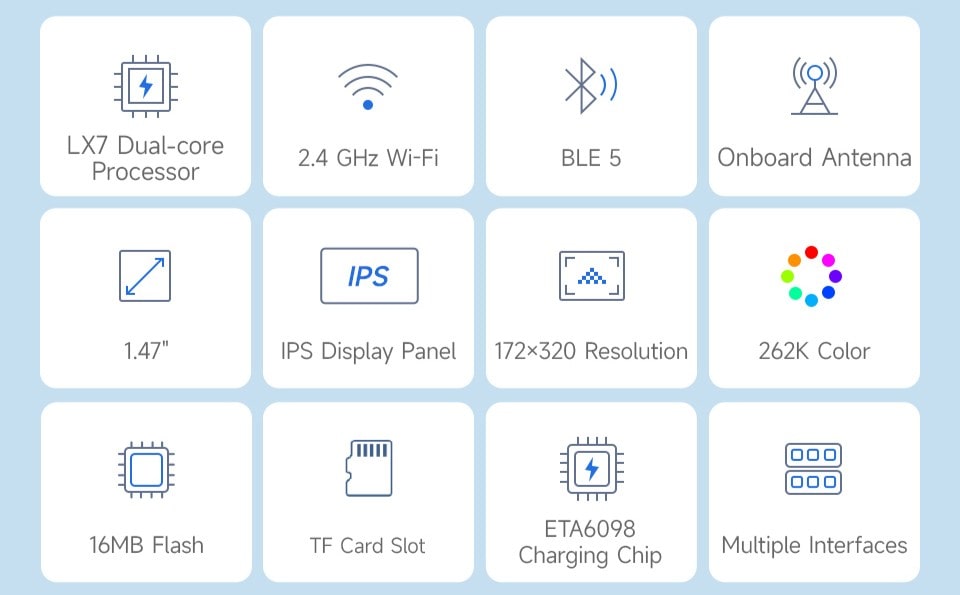

Key features
  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

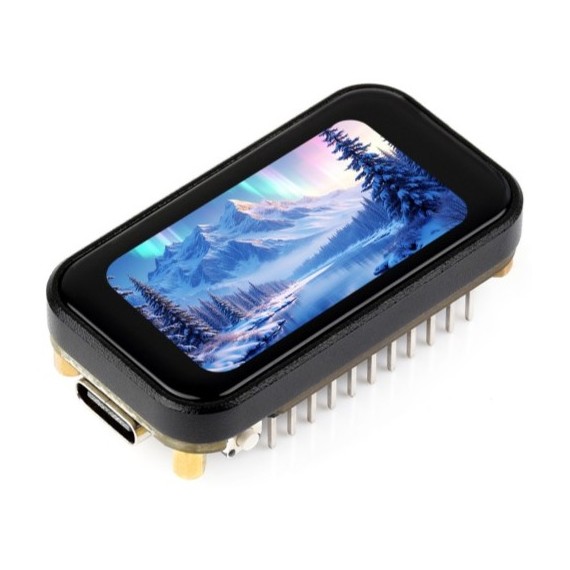

  • Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
  • Adapting multiple IO interfaces, supports full-speed USB standard
  • Onboard TF card slot for external TF card storage of pictures or files
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios



Available options

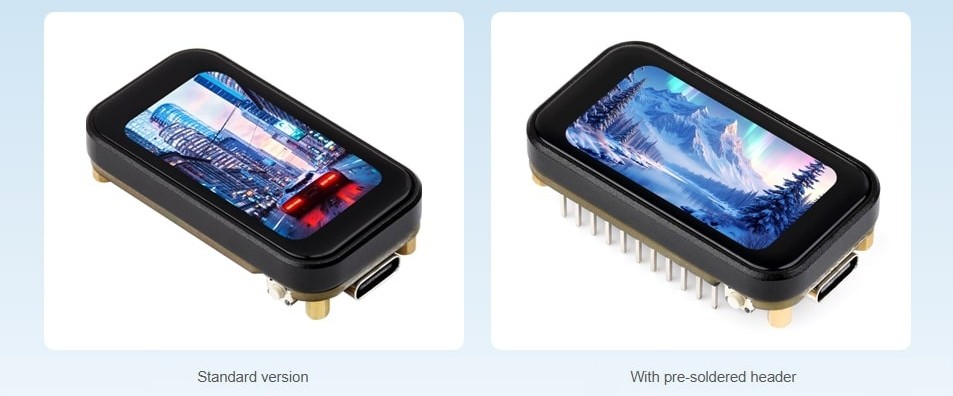

  • Board with pre-soldered headers - GRobotronics SKU: 31-00031199
  • Board with loose unsoldered headers - GRobotronics SKU: 31-00031202
Display specifications

Display size

1.47inch

Resolution

172×320 pixels

Display driver

JD9853

Touch driver

AXS5106L

Display interface

4-wire SPI

Touch interface

I2C

Display panel

IPS

Touch type

Capacitive

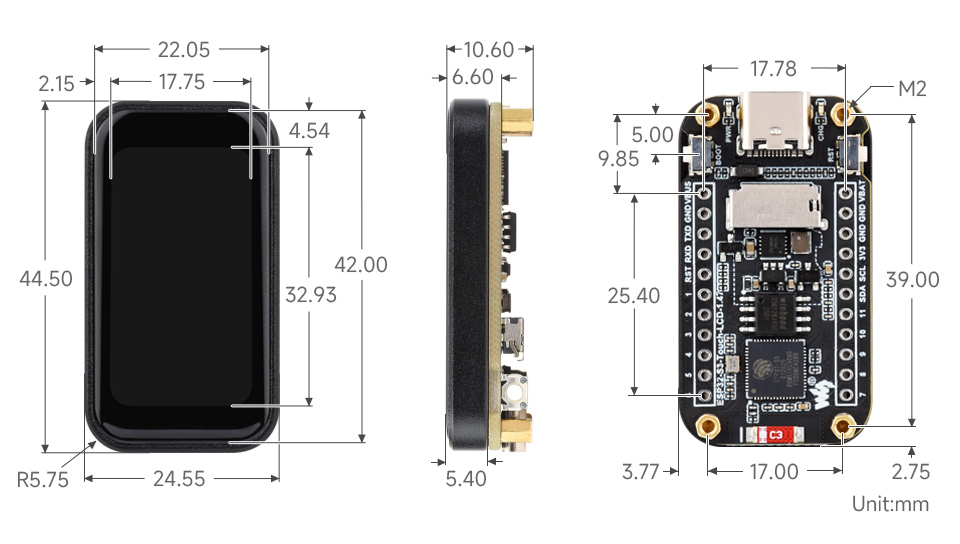

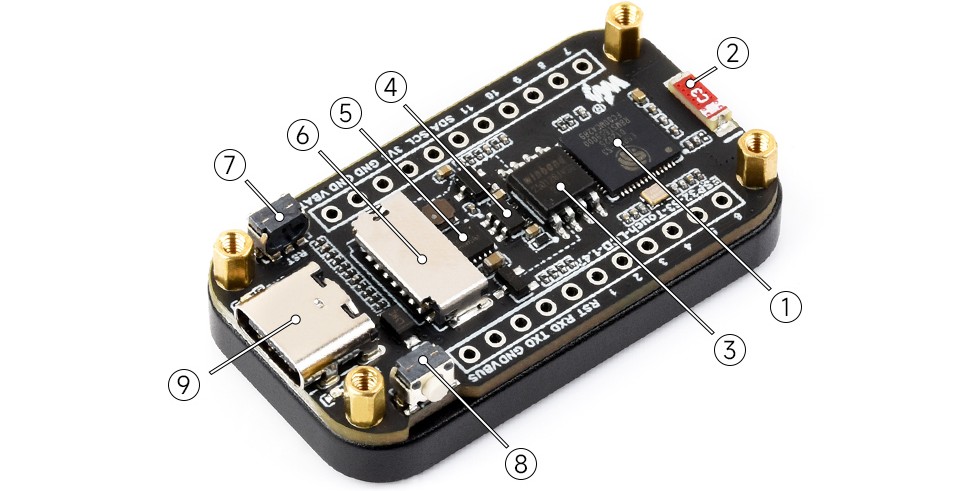

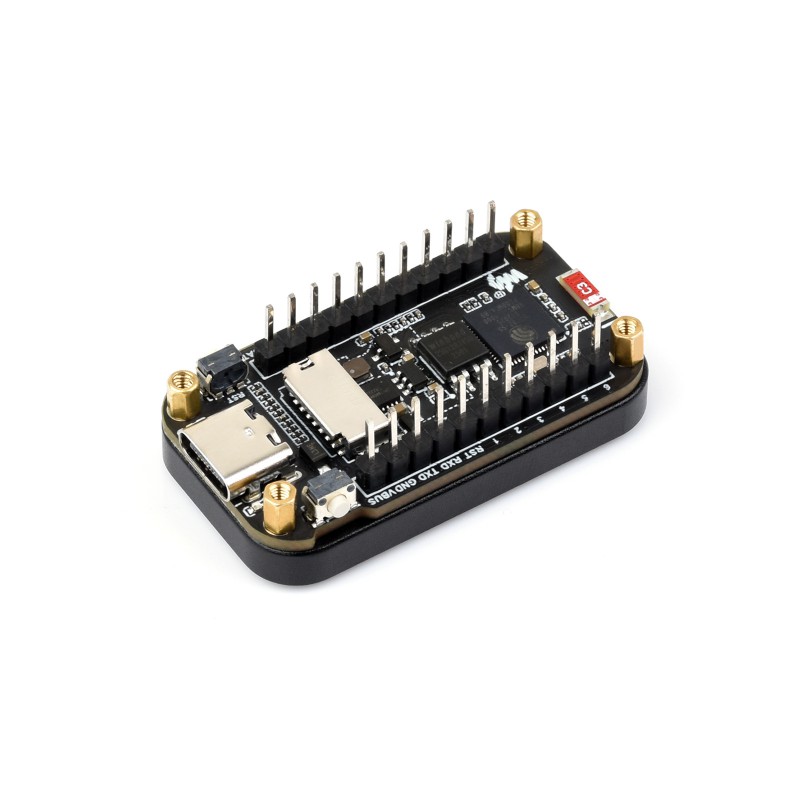

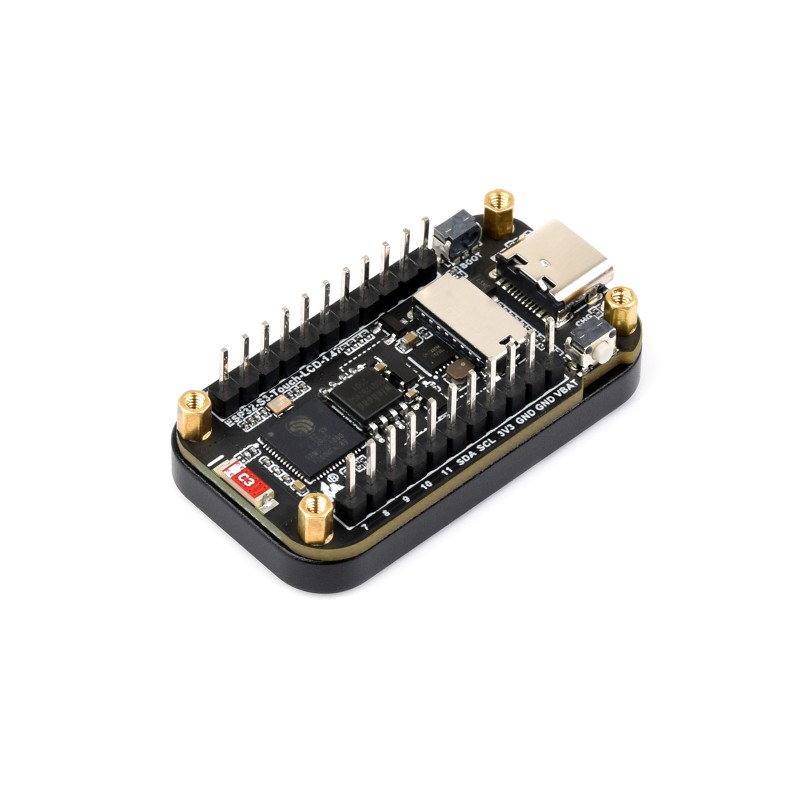

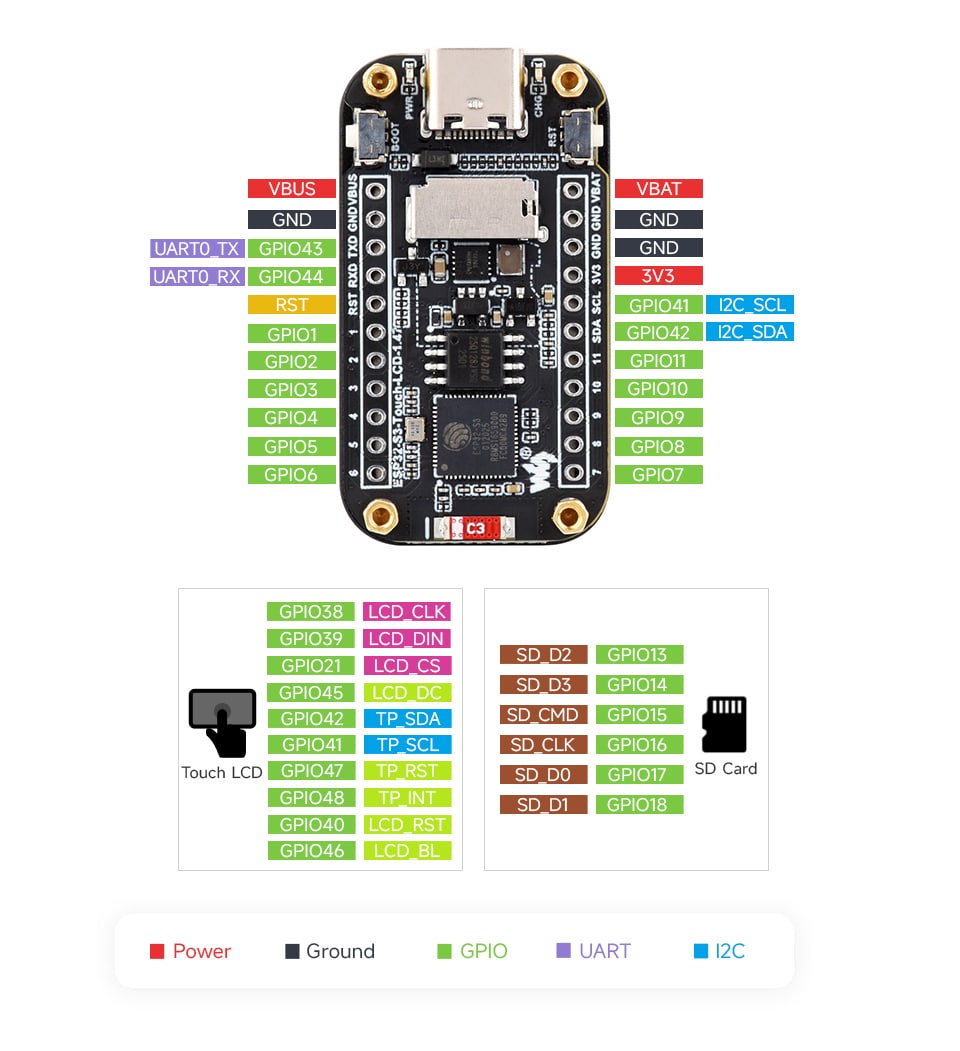

Hardware layout
  1. ESP32-S3R8
  2. Onboard ceramic antenna
  3. 16MB Flash
  4. ME6217C33M5G Low dropout regulator, 800mA output (Max.)
  5. ETA6098
  6. TF card slot
  7. RESET button
  8. BOOT button
  9. Type-C interface


Application examples


Package contents
  • GRobotronics SKU: 31-00031199

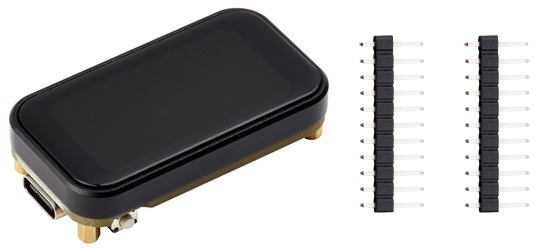

    • ESP32-S3-Touch-LCD-1.47 with pre-soldered header ×1
  • GRobotronics SKU: 31-00031202
    • ESP32-S3-Touch-LCD-1.47 ×1
    • Black header ×2


Company
Waveshare
Part Number
ESP32-S3-Touch-LCD-1.47-M
Warranty
12 Month Manufacturer Warranty
G. Weight
0.009kg
Display Type
Touch IPS LCD
SoC Series
ESP32-S3
Board Specifications
MCU/SoC
ESP32-S3
Processor
Xtensa dual-core 32-bit LX7
Clock Speed
240 MHz
RAM
512 kB SRAM & 8MB PSRAM
ROM
384 kB
Flash Memory
16 MB
Bluetooth
Bluetooth 5
Wi-Fi
Wi-Fi 4 – 802.11b/g/n – 2.4 GHz
Extra Features
  • Card slot
  • Display
Display Specifications
Color Quality
262Κ
Display Size
1.47 "
Resolution
172×320
Touchscreen
