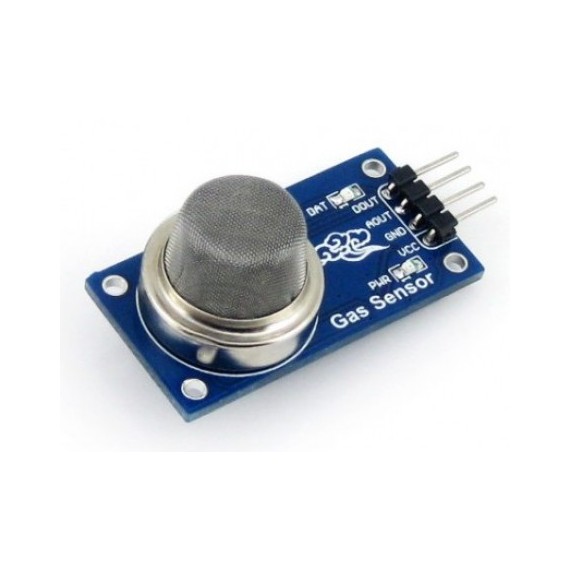

Waveshare MQ-2 Gas Sensor Module

Sensitive for LPG, propane, hydrogen Output voltage boosts along with the concentration of the measured gases increases Fast response and recovery...
31-00009529
Gross Weight: 0.01kg
Company: Waveshare
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
6.90
Without VAT 5.56
+
WISHLIST COMPARE

DESCRIPTION

  • Sensitive for LPG, propane, hydrogen
  • Output voltage boosts along with the concentration of the measured gases increases
  • Fast response and recovery
  • Features boost circuit
  • Adjustable sensitivity
  • Signal output indicator

SPECIFICATIONS

Sensor Type:
  • Gas
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Analog
  • Digital
Communication Protocol:
  • Without

EXTRA SPECIFICATIONS

  • Power: 2.5V ~ 5.0V
  • Applications: Gas leakage detector

Dimensions

  • 40 x 21mm
  • Mounting holes size: 2.0mm

Connection

In the case of working with a MCU:

  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
