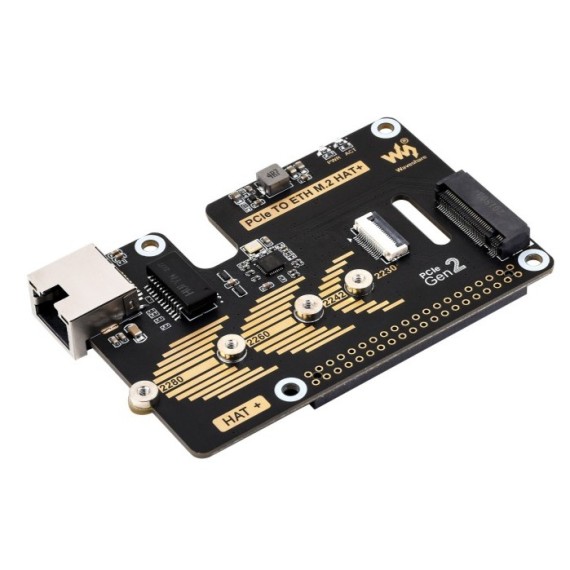

Waveshare PCIe to M.2 Adapter & Gigabit Ethernet HAT+

Κωδικός:

31-00028515

Part Number: PCIe TO ETH M.2 HAT+

ΚατασκευαστήςWaveshare Part NumberPCIe TO ETH M.2 HAT+ ΣυμβατότηταRaspberry Pi 5 Τύπος HATEthernet, Memory

Διαθέσιμο

Αποστολή σε 24 ώρες

€27⁴⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€24.66

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This HAT+ board is specifically designed for the Raspberry Pi 5, offering a driver-free, plug-and-play experience. It expands the capabilities of the Raspberry Pi 5 by adding a Gigabit Ethernet port and supporting M.2 hard drives of various sizes. It is compatible with NVMe protocol M.2 interface drives, providing faster read and write speeds compared to the TF card slot, resulting in higher work efficiency. Additionally, it supports booting the Raspberry Pi 5 from an NVMe SSD.

Features

Supports NVMe protocol M.2 interface hard drives
Only supports PCI-E x1 Gen2 mode
Based on the 16-pin PCIe interface of the Raspberry Pi 5, only supports Pi 5
Compatible with M.2 hard drives in 2230, 2242, 2260, and 2280 sizes
Equipped with the high-performance RTL8111H Gigabit Ethernet chip
Features a sink design for the network port
Utilizes an immersion gold process for improved appearance, anti-oxidation, anti-corrosion, and stronger soldering
Onboard operational indicator lights for easy status monitoring
- PWR: Continuously lit when powered on
- ACT: Blinks during read and write operations
Network port indicator
- Green light blinks for Gigabit network port
- Yellow light blinks for 100 Mbps network port

Note: Since Raspberry Pi does not natively support NVMe booting, the config.txt file be modified (see the wiki page).

What is HAT+?

Based on the original HAT standard, HAT+ is a new standard introduced by Raspberry Pi.

Compatible with the Raspberry Pi 40-pin GPIO, plug-and-play
Integrates an EEPROM chip for automatic board configuration loading, simplifying the development process
Features standardized dimensions for a perfect fit with Raspberry Pi
Supports power supply through the Raspberry Pi 40-pin GPIO
