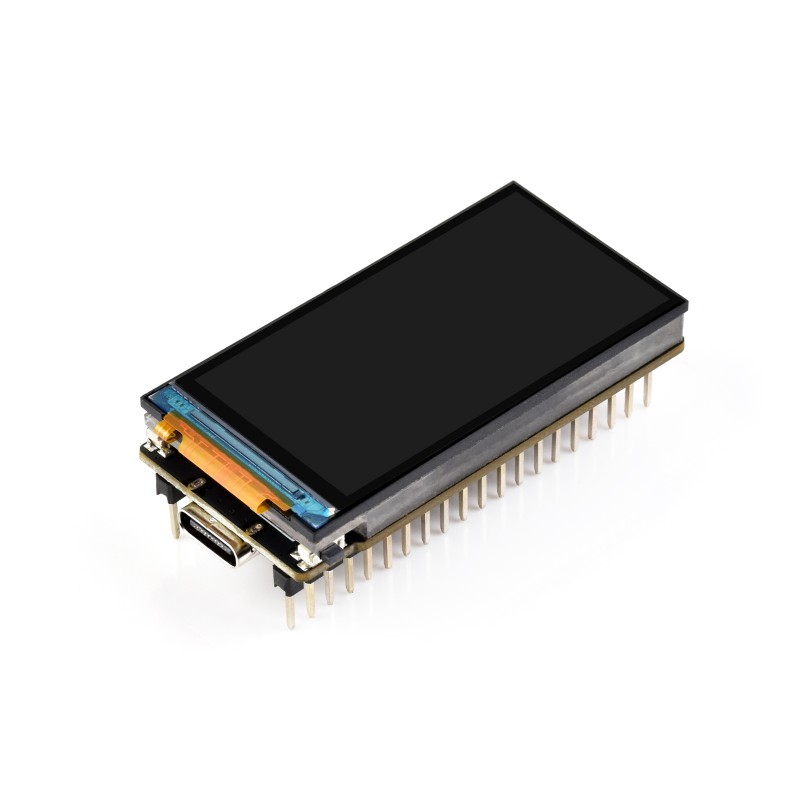

Waveshare ESP32-C6 LCD – 1.9" 170×320

31-00030937
ESP32-C6-LCD-1.9
CompanyWaveshare Part NumberESP32-C6-LCD-1.9
Upon Order
Available in 45-60 days
1990
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

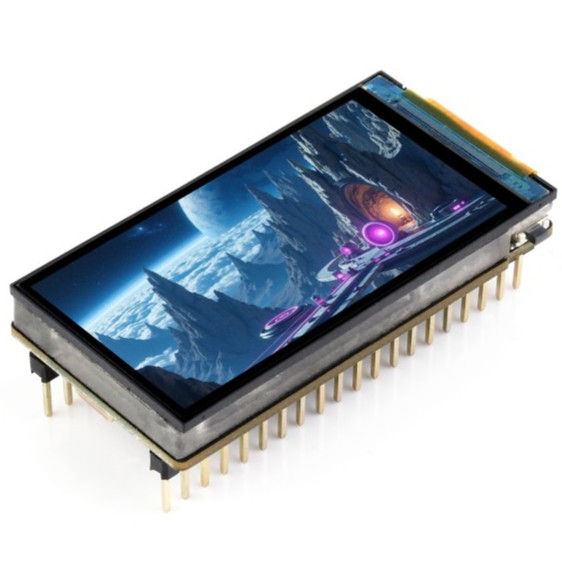

This product adopts the ESP32-C6FH8 chip with Wi-Fi 6 and Bluetooth BLE 5 support and integrates 8MB of flash memory. It features a 1.9-inch onboard LCD display capable of smoothly running GUI programs such as LVGL. Additional components include a QMI8658 6-axis IMU, TF card slot, lithium battery header, and more. It is compatible with the Pico header, offering excellent expandability and compatibility. Ideal for rapid development of HMI and other ESP32-C6-based applications.

Key features
  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
  • Supports Wi-Fi 6 and Bluetooth 5 (LE), with an onboard antenna
  • Built-in 512kB HP SRAM, 16kB LP SRAM, and 320kB ROM, integrates 8MB Flash
  • Onboard 1.9inch LCD display, 170×320 resolution, 262K color, delivering clear and vivid color image display
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
  • Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
  • Onboard TF card slot for external TF card storage of pictures or files
  • Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability



Available options
  • Display with touch function - GRobotronics SKU: 31-00030941
  • Display without touch function - GRobotronics SKU: 31-00030937
Display specifications
Display panelLCD
Display size1.9 inch
Resolution170×320 pixels
Display colors262K
Brightness500 cd/m²
Contrast ratio900:1
Communication interfaceSPI
Driver ICST7789V2

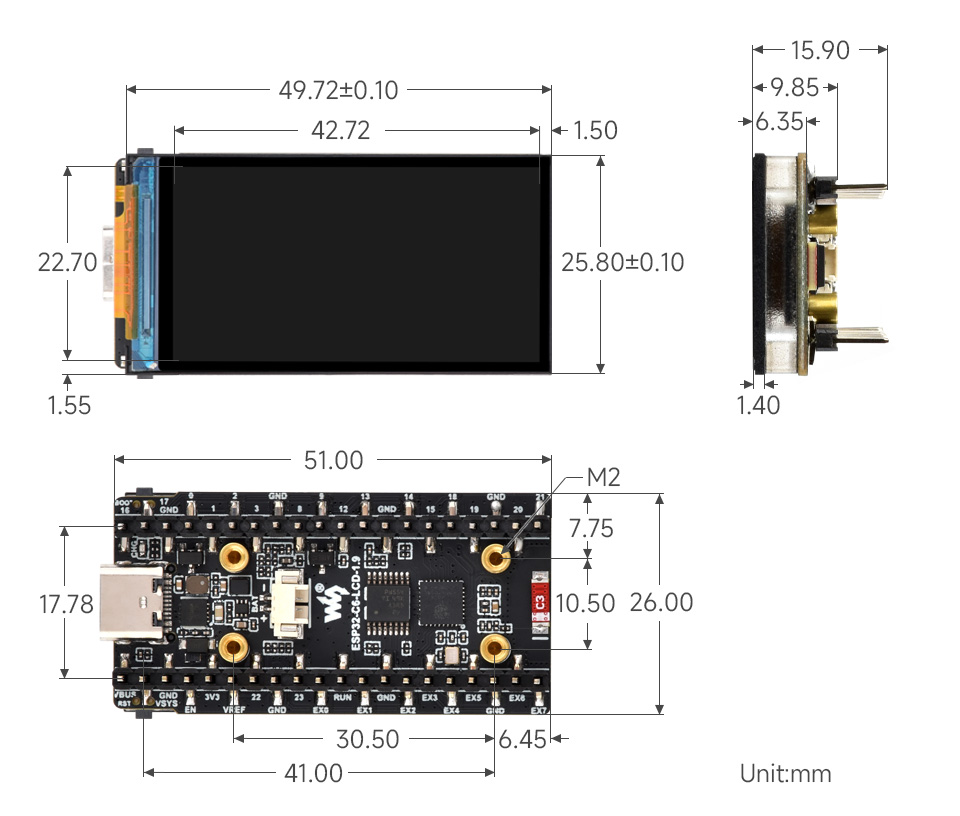

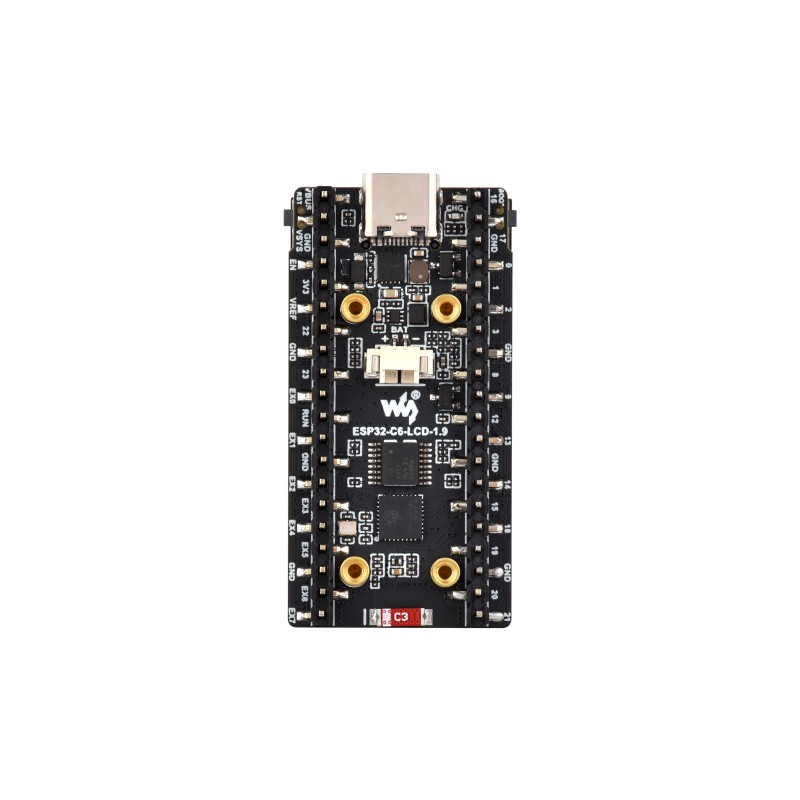

Hardware layout
  1. ESP32-C6FH8, integrates 8MB Flash, up to 160MHz operating frequency
  2. TCA9554, 8-ch GPIO expander chip, enhances IO flexibility
  3. MX1.25 battery header: MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
  4. RESET button
  5. USB Type-C port, for power input and data transmission
  6. TF card slot (on the back side), supports TF card for extended storage
  7. Charge indicator: Lithium battery charge indicator, lights up when charging, off when fully charged
  8. BOOT button, for downloading program or entering boot mode
  9. WS2812 RGB LED (for non-touch version only), for colorful lighting effects, on the back side of the PCB
  10. QMI8658 sensor (on the back side), 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  11. IPEX1 connector (for touch version only), switching to use external antenna via resoldering an onboard resistor
  12. Onboard ceramic antenna, onboard antenna design for space saving and signal stability





Package contents

Company
Waveshare
Part Number
ESP32-C6-LCD-1.9
Warranty
12 Month Manufacturer Warranty
G. Weight
0.008kg
Display Type
LCD
SoC Series
ESP32-C6
Board Specifications
MCU/SoC
ESP32-C6
Processor
Single-core 32-bit RISC-V
Clock Speed
160 MHz
RAM
512 kB SRAM
ROM
320 kB
Flash Memory
8 MB
Bluetooth
Bluetooth 5
Wi-Fi
Wi-Fi 6 – 802.11b/g/n/ax – 2.4 GHz
Extra Features
  • Battery connector
  • Card slot
  • Display
  • IMU Sensor
Display Specifications
Color Quality
262Κ
Display Size
1.9 "
Resolution
170×320
Touchscreen
Without
