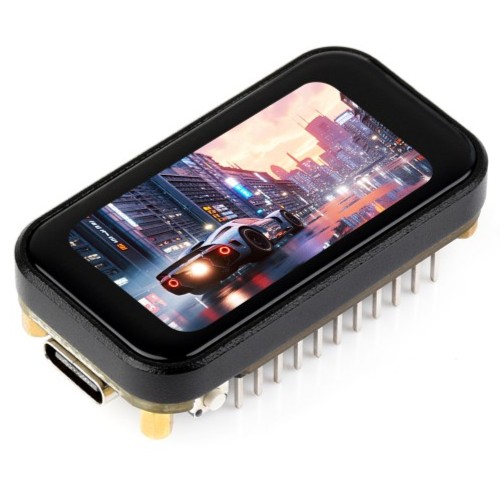

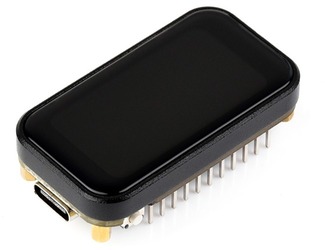

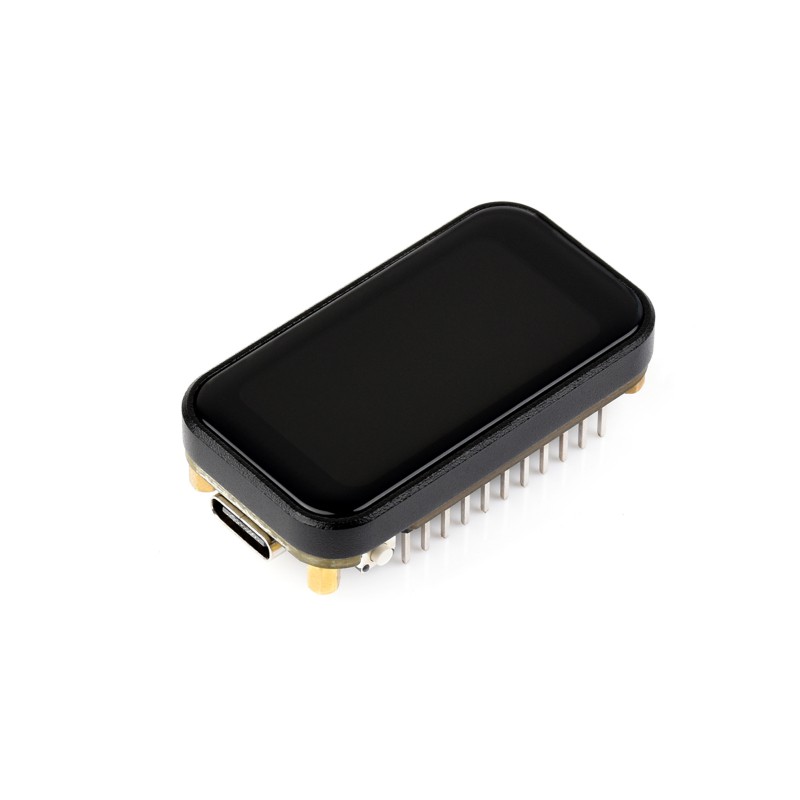

Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320

31-00031201
ESP32-C6-Touch-LCD-1.47-M
ΚατασκευαστήςWaveshare Part NumberESP32-C6-Touch-LCD-1.47-M SoC SeriesESP32-C6 Εύρος Χρωμάτων262Κ Συμβατότητα ΟθόνηςESP32 Μέγεθος Οθόνης1.47 " Ανάλυση172×320 Αναλογία Οθόνης1:2 Οθόνη AφήςCapacitive ΔιασύνδεσηUSB Type-C
Εξαντλημένο
1990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This ESP32-C6 Touch LCD features the ESP32-C6FH8 chip with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support. It includes 8MB of flash memory and an onboard 1.47-inch IPS display capable of smoothly running GUI programs such as LVGL. It is well-suited for rapid development of HMI and other ESP32-C6-based applications.

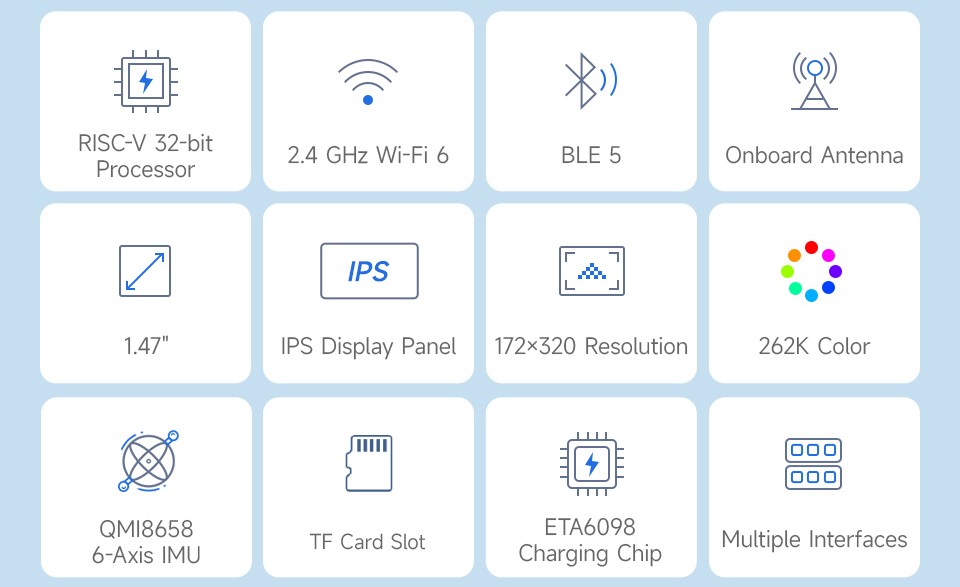

Key features
  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash
  • Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
  • Adapting multiple IO interfaces, supports full-speed USB standard
  • Onboard TF card slot for external TF card storage of pictures or files
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

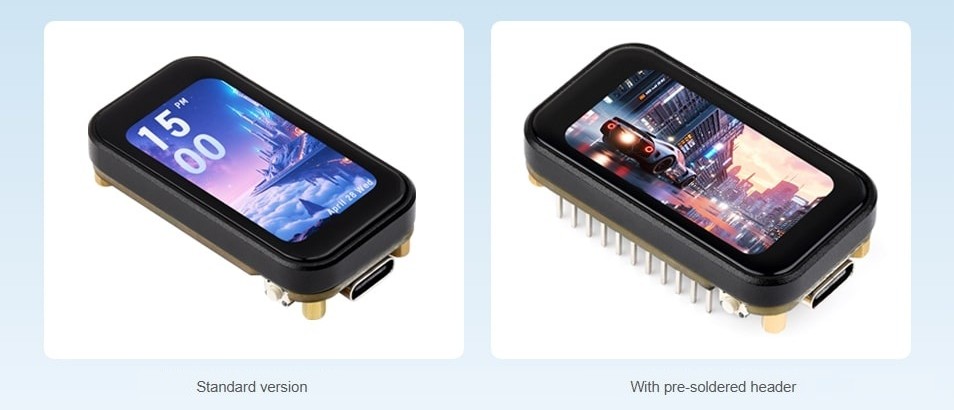

Available options

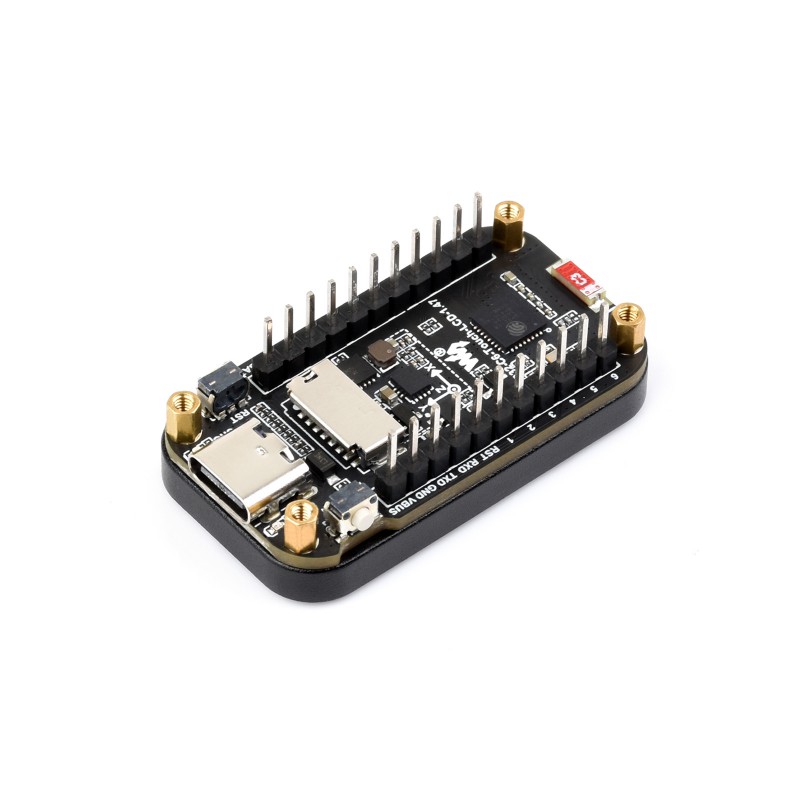

  • Board with pre-soldered headers - GRobotronics SKU: 31-00031201
  • Board with loose unsoldered headers - GRobotronics SKU: 31-00031203
Display specifications
Display size1.47inch
Resolution172×320 pixels
Display driverJD9853
Touch driverAXS5106L
Display interface4-wire SPI
Touch interfaceI2C
Display panelIPS
Touch typeCapacitive

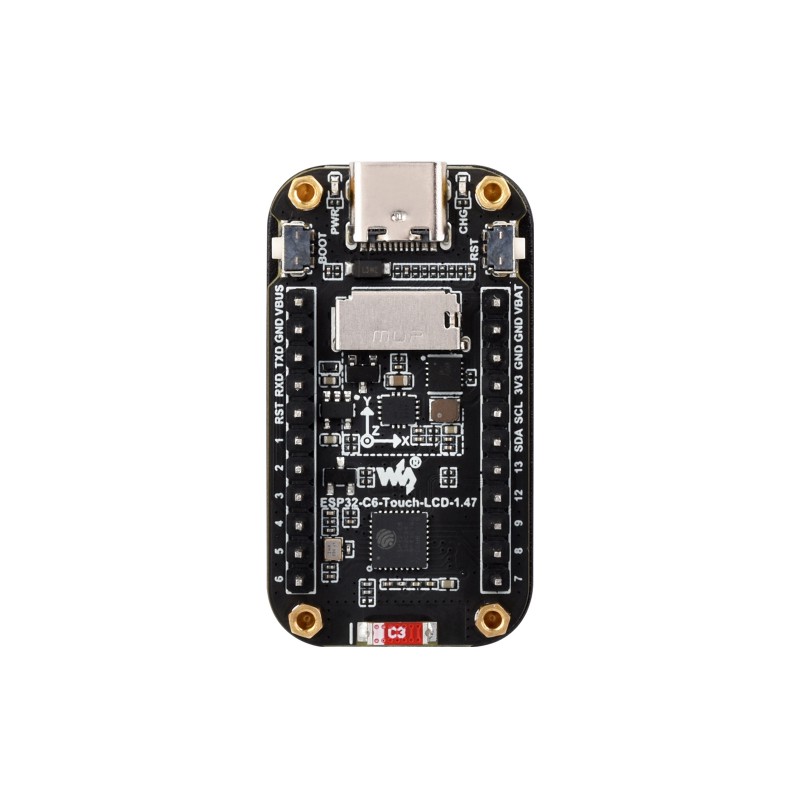

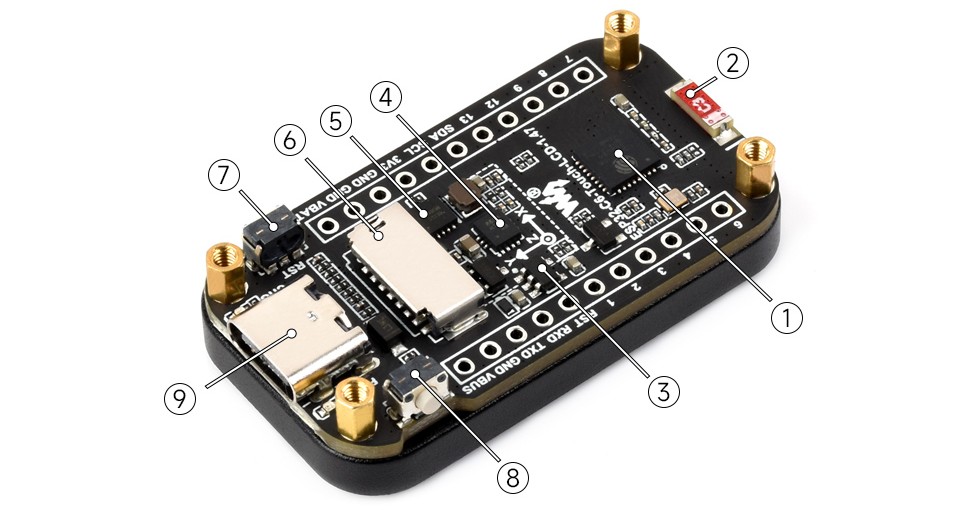

Hardware layout
  1. ESP32-C6FH8
  2. Onboard ceramic antenna
  3. ME6217C33M5G Low dropout regulator, 800mA output (Max.)
  4. QMI8658 6-Axis IMU
  5. ETA6098
  6. TF card slot
  7. RESET button
  8. BOOT button
  9. Type-C interface

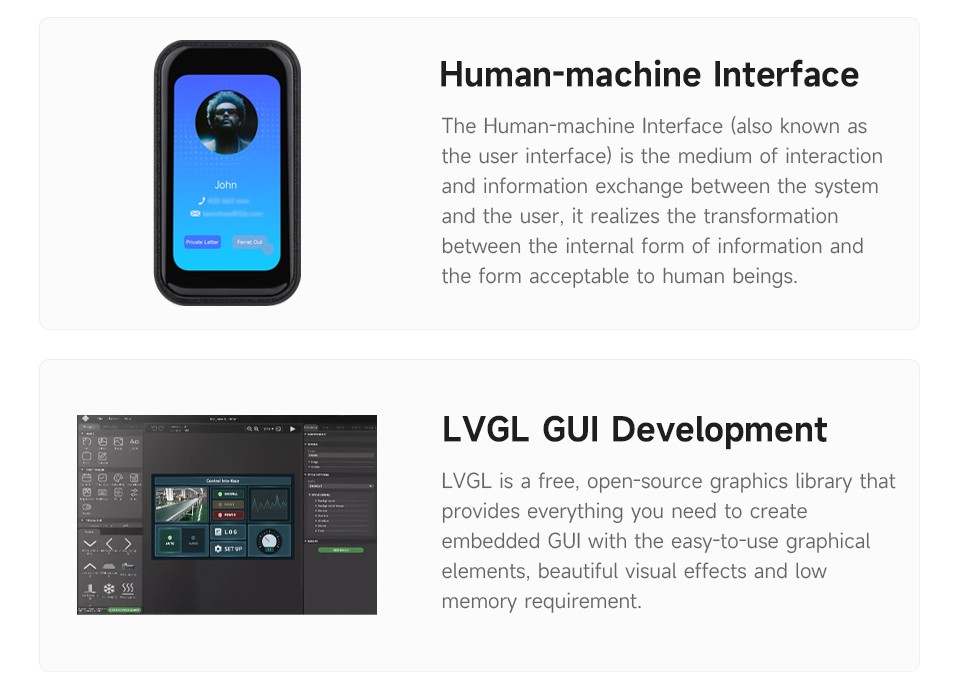

Application examples


Package contents
  • GRobotronics SKU: 31-00031201

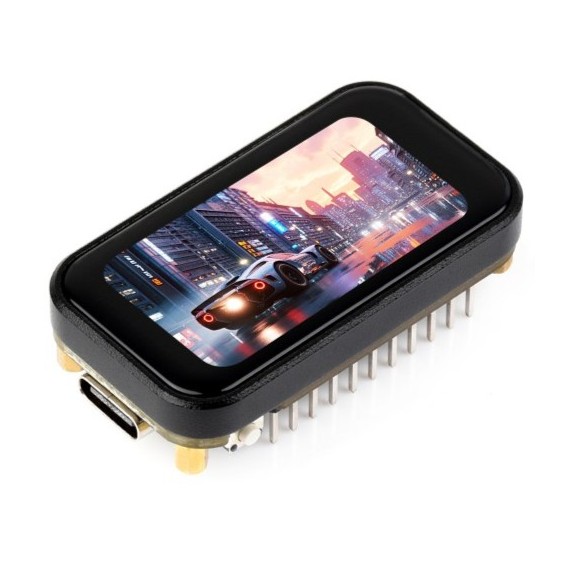

    • ESP32-C6-Touch-LCD-1.47 with pre-soldered header ×1

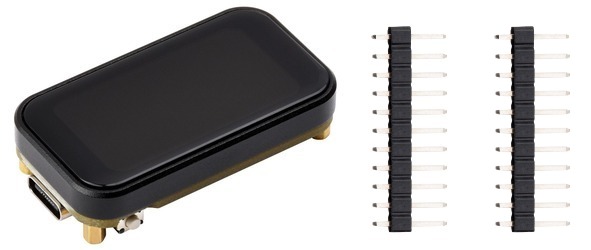

  • GRobotronics SKU: 31-00031203
    • ESP32-C6-Touch-LCD-1.47 ×1
    • Black header ×2


Κατασκευαστής
Waveshare
Part Number
ESP32-C6-Touch-LCD-1.47-M
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.008kg
Flash Memory
8MB
Ram Memory
512KB HP SRAM & 16KB LP SRAM
Rom Memory
320KB
Bluetooth
Bluetooth 5.3
Wi-Fi
Wi-Fi 6
Extra Features
  • IMU 6-Axis ,
  • LCD Display ,
  • TF card slot
SoC Series
ESP32-C6
Εύρος Χρωμάτων
262Κ
Συμβατότητα Οθόνης
  • ESP32
Μέγεθος Οθόνης
1.47 "
Ανάλυση
172×320
Αναλογία Οθόνης
  • 1:2
Οθόνη Aφής
Capacitive
Διασύνδεση
  • USB Type-C
