Αρχική Σελίδα/Ρομποτική/Αναπτυξιακά Εργαλεία/ESP32 & ESP8266/Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320

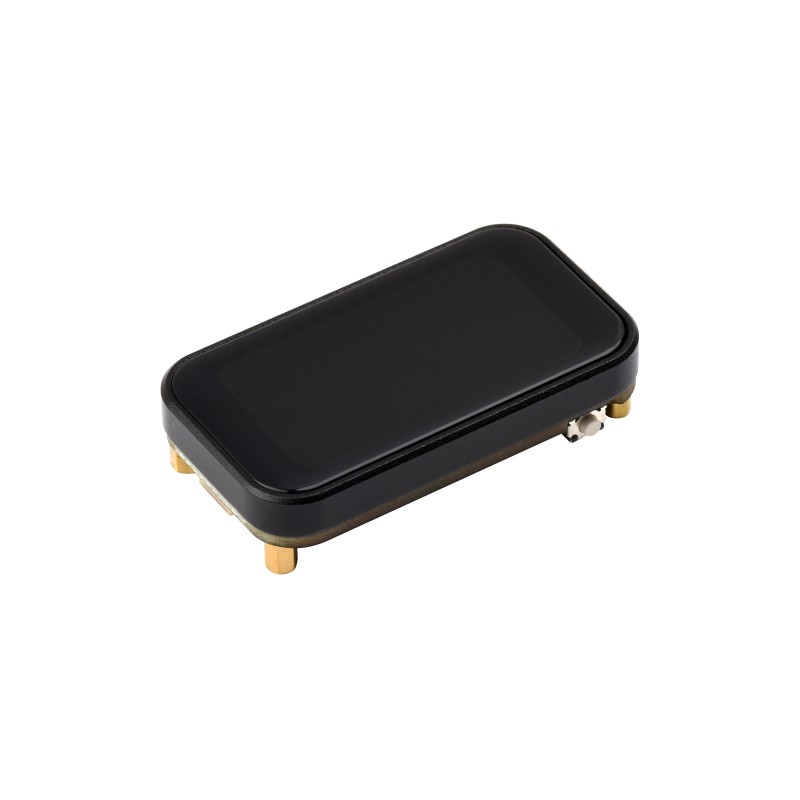

Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320, Header: With Loose Unsoldered Headers

Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320, Header: With Loose Unsoldered Headers, 2 image

Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320, Header: With Loose Unsoldered Headers, 3 image

Waveshare ESP32-C6 Touch IPS LCD with IMU – 1.47" 172×320

Κωδικός:

31-00031203

Part Number: ESP32-C6-Touch-LCD-1.47

Header:

With Pre-soldered Headers With Loose Unsoldered Headers

ΚατασκευαστήςWaveshare Part NumberESP32-C6-Touch-LCD-1.47

Εξαντλημένο

€18⁶⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

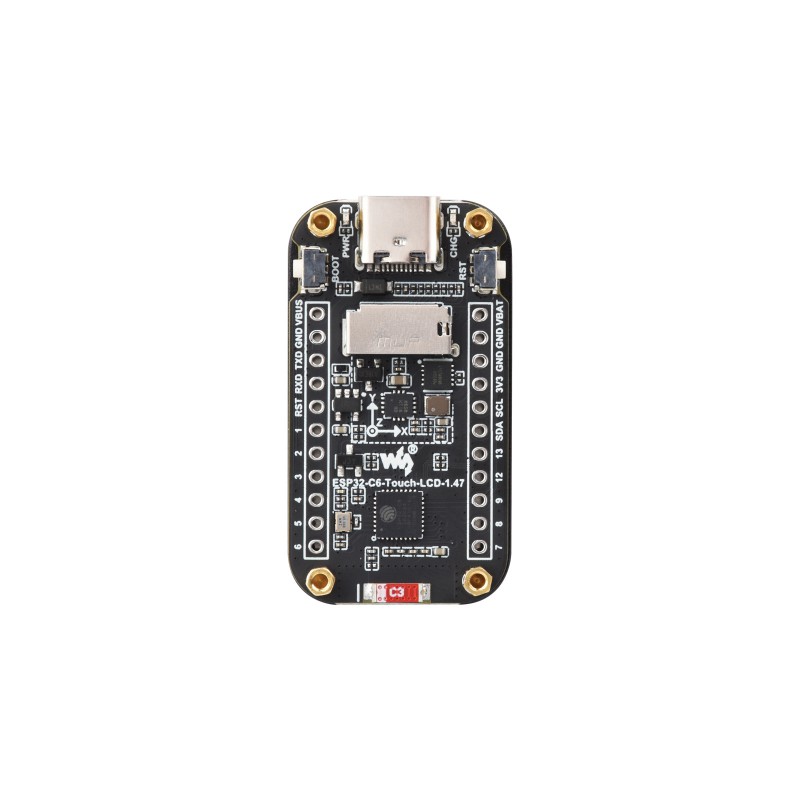

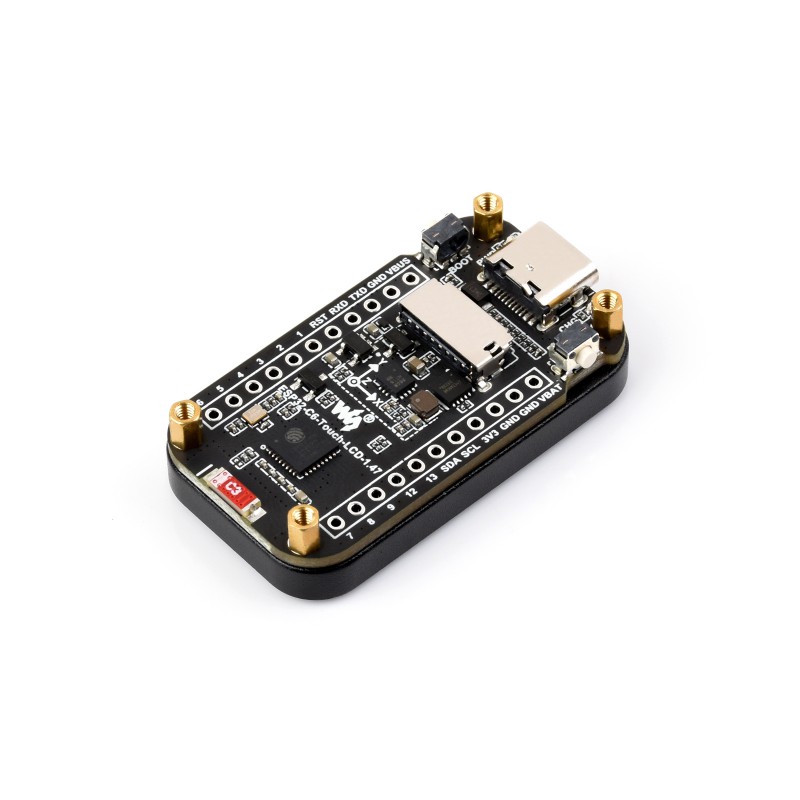

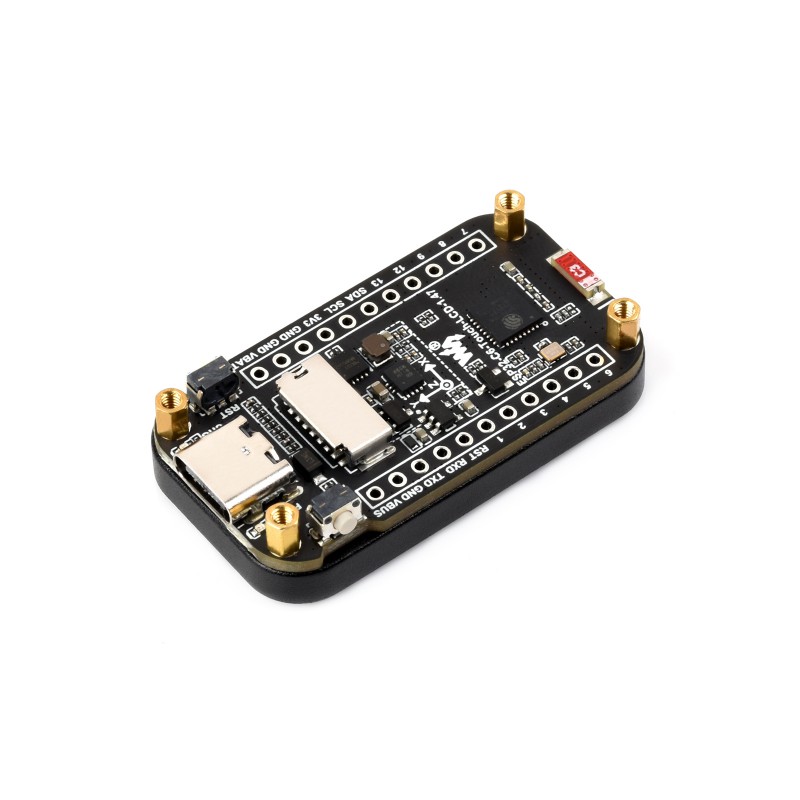

This ESP32-C6 Touch LCD features the ESP32-C6FH8 chip with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support. It includes 8MB of flash memory and an onboard 1.47-inch IPS display capable of smoothly running GUI programs such as LVGL. It is well-suited for rapid development of HMI and other ESP32-C6-based applications.

Key features

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash

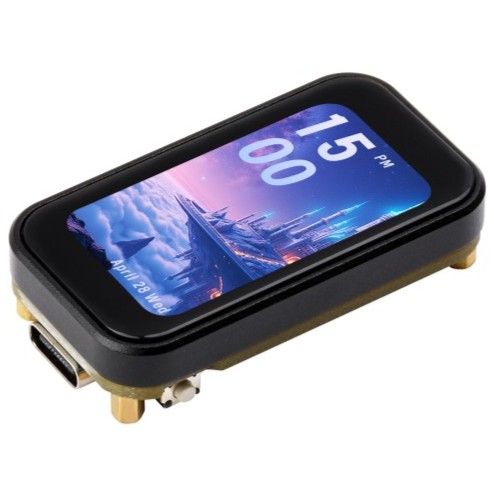

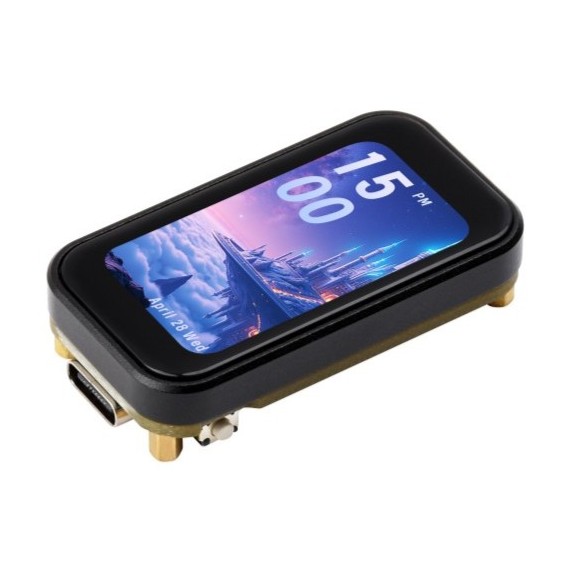

Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, supports full-speed USB standard
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Available options

Board with pre-soldered headers - GRobotronics SKU: 31-00031201
Board with loose unsoldered headers - GRobotronics SKU: 31-00031203

Display specifications

Display size	1.47inch
Resolution	172×320 pixels
Display driver	JD9853
Touch driver	AXS5106L
Display interface	4-wire SPI
Touch interface	I2C
Display panel	IPS
Touch type	Capacitive
